Catbridge

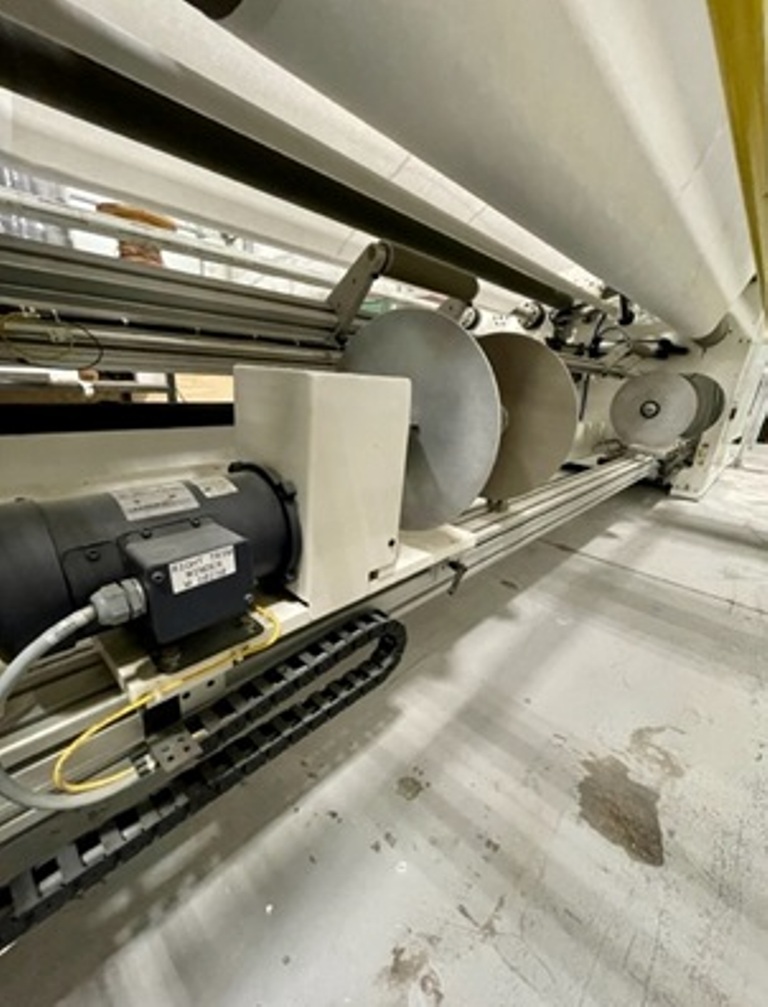

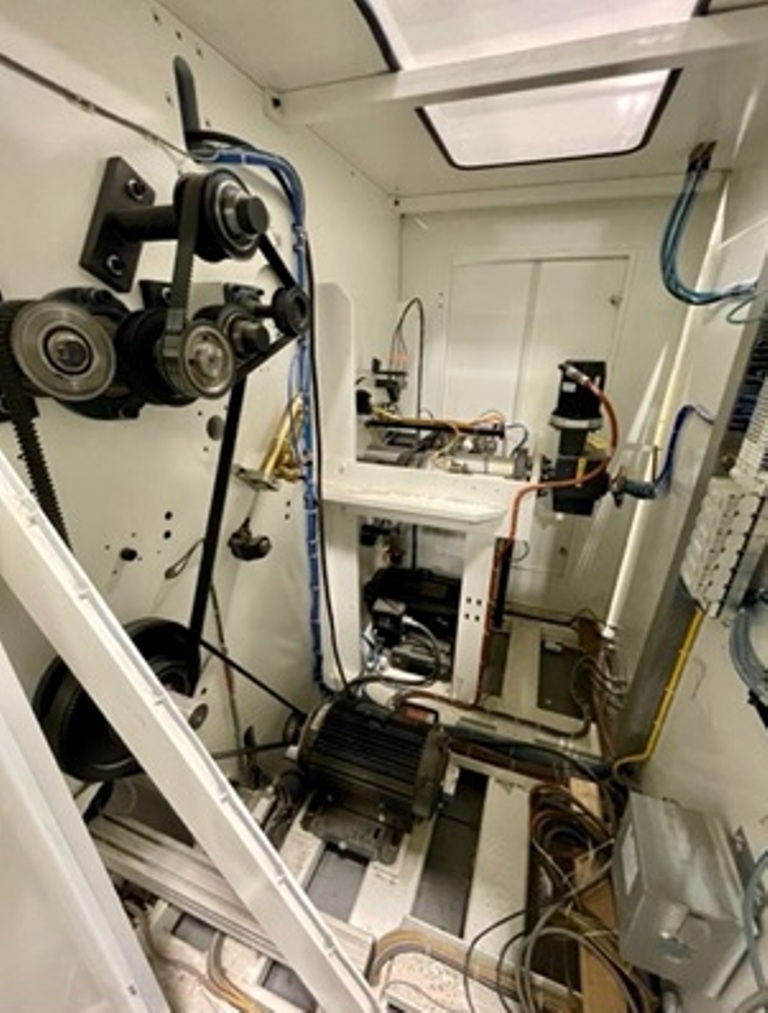

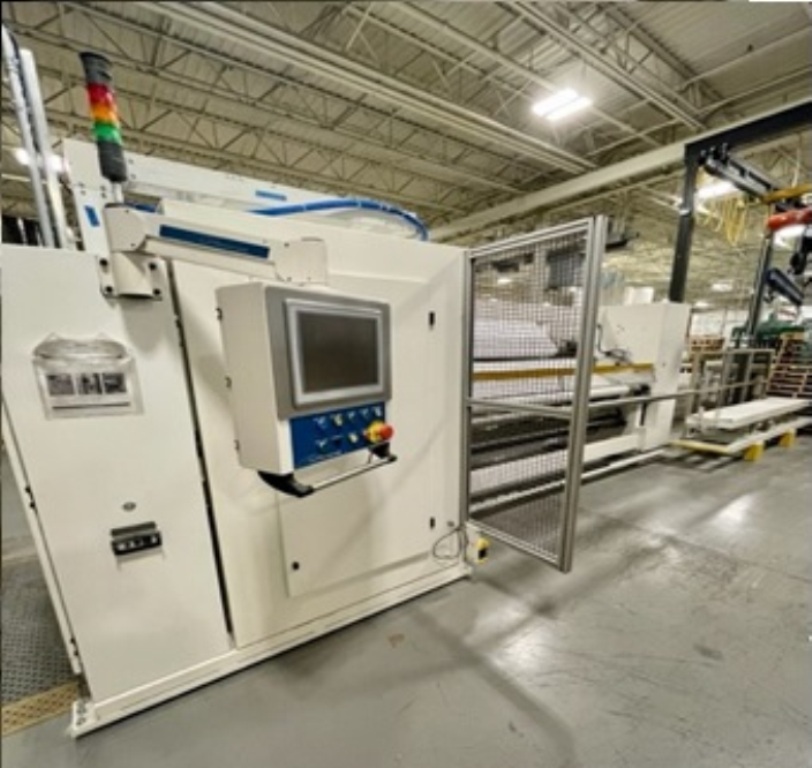

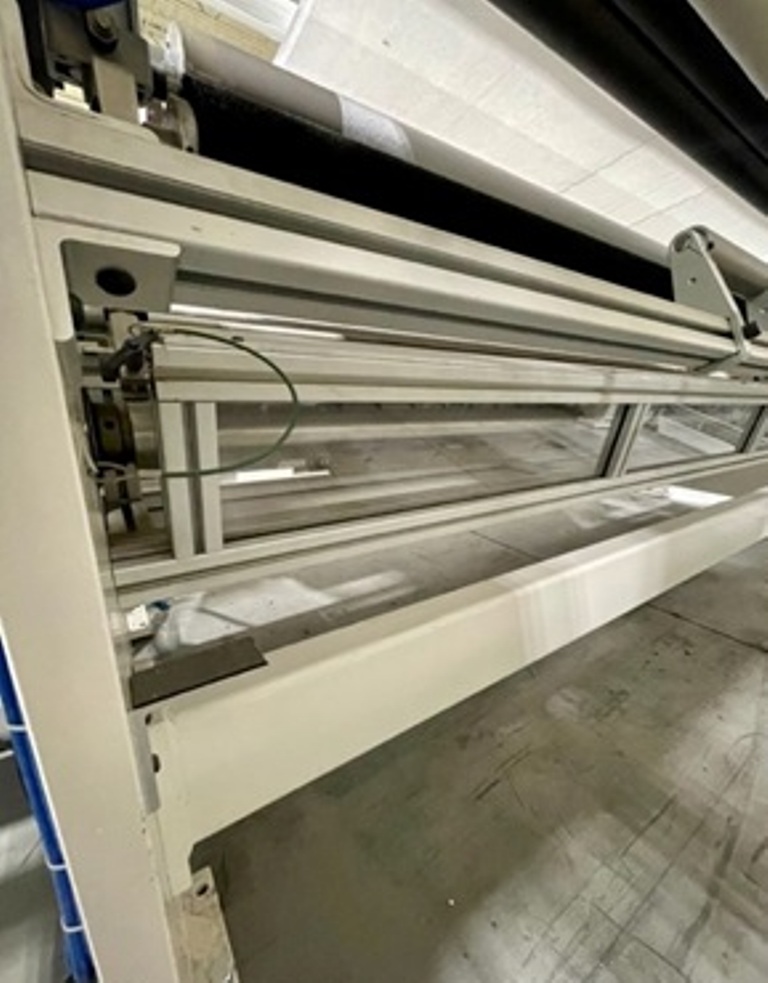

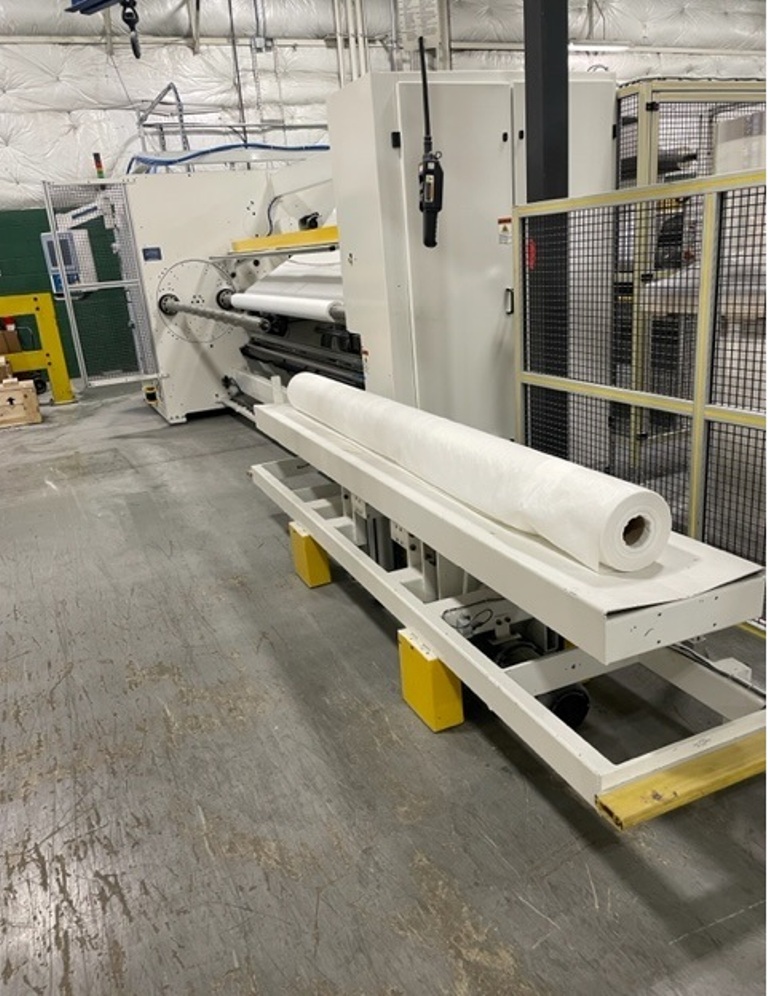

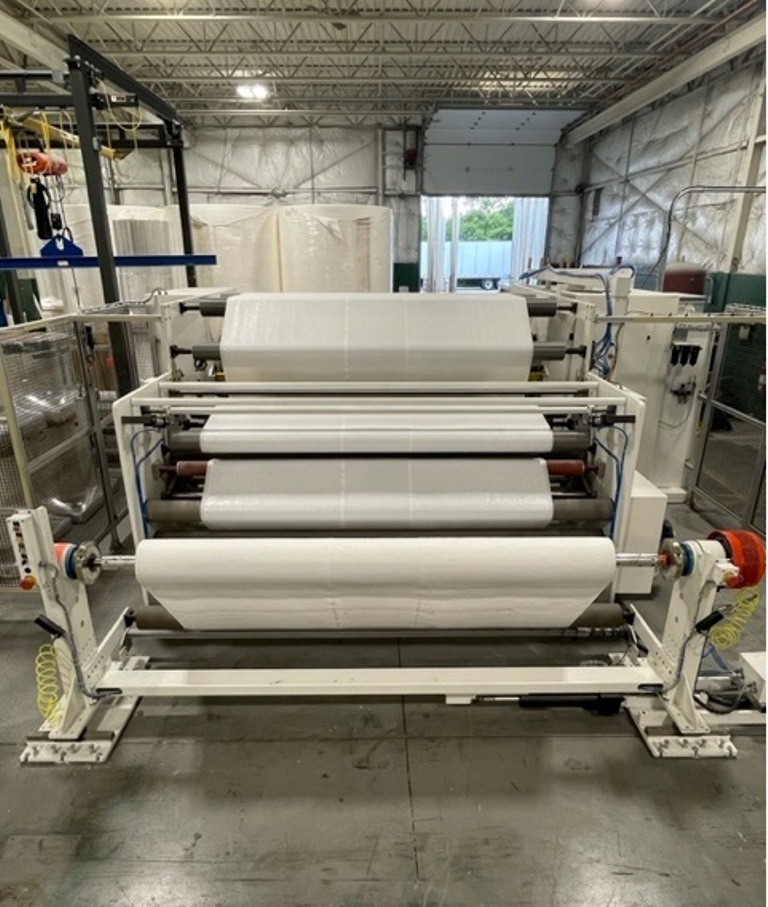

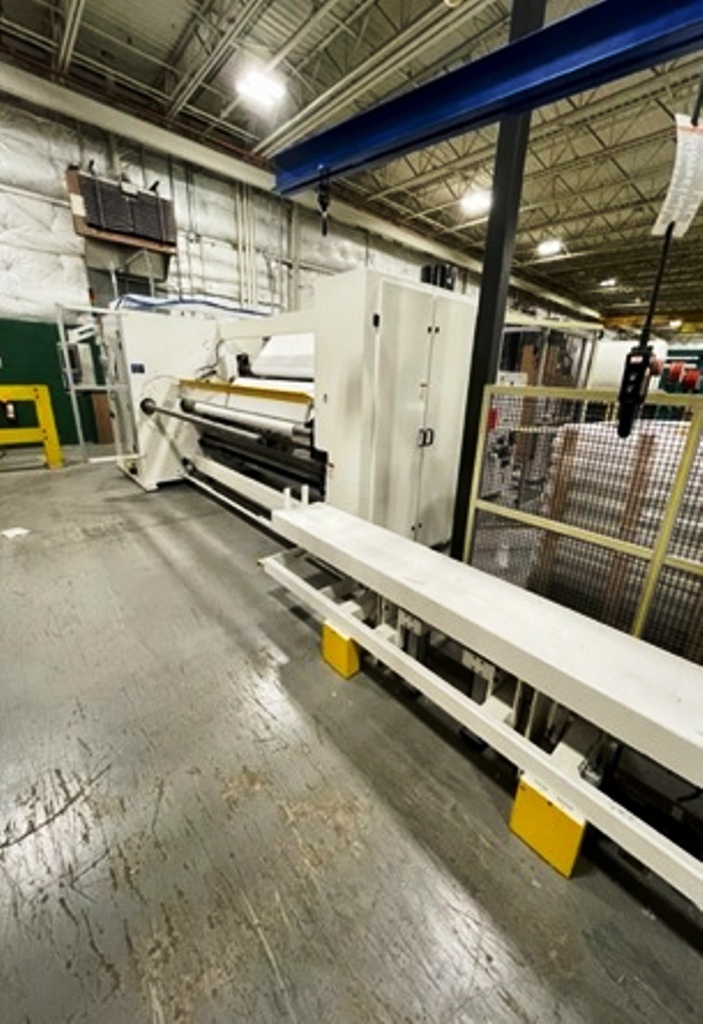

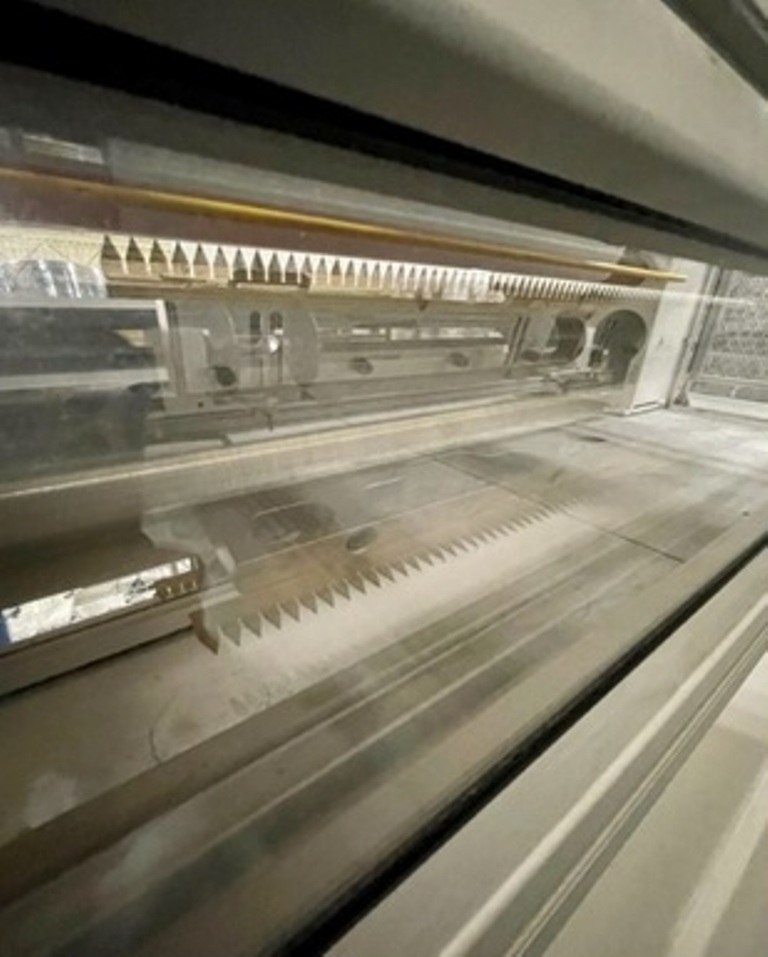

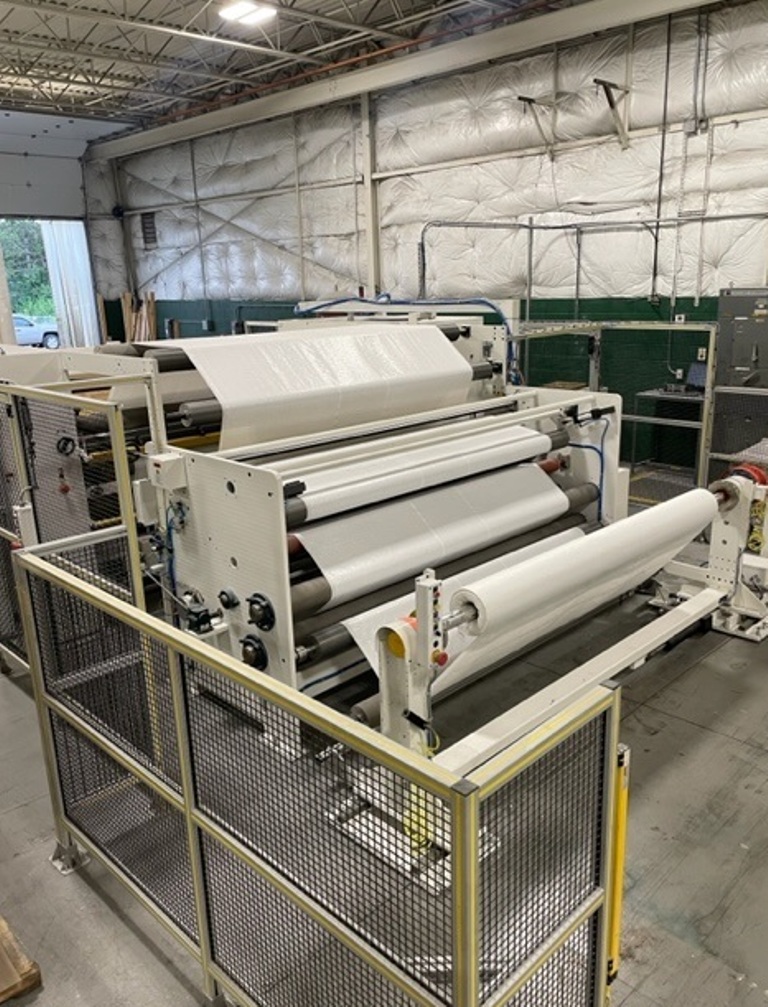

110” maximum web width Catbridge model 324 simplex turret rewinder, with 3” air expanding rewind shafts. Slitting is shear cut, capable of score slitting and razor slitting. Maximum rewind diameter of 18”. Automatic core loading and finished roll unloading. Auto cut off and transfer. Rewinding is lockcore. AC vector drive, PLC control. Dual bowed rolls for positive web separation. Maximum speed of 1000FPM. One pair of trim winders. Model W600 shaft type unwind with a air cooled brake. 40” unwind diameter. Automatic edge guide. Closed loop unwind tension control. 3000lb unwind weigh capacity. One perforator system inline with the machine, minimum perf length is 4”. Servo driven system.
