Used Slitters

45" Dusenbery Model 635 BL

Images

Description

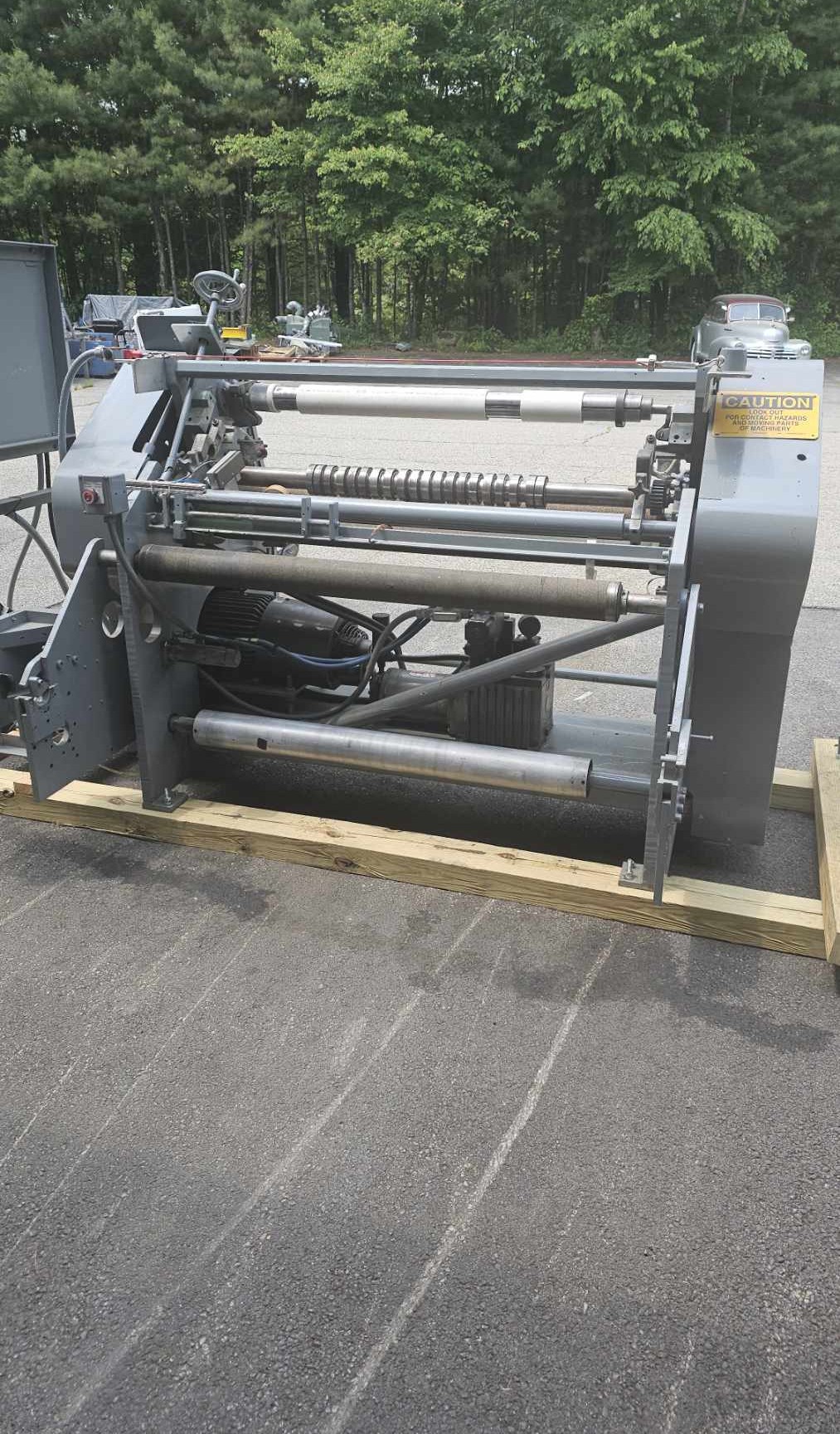

45" Dusenbery Model 635 BL slitter. SN: 60753. Maximum rewind diameter is 18”. Duplex rewind with core spacer differential rewind tension control-all the slit roll has individual tension control. Slitting can be razor or shear cut. The maximum speed is 500 FPM. Rubberized cork covered pull rolls and idlers. Predetermining footage counter.

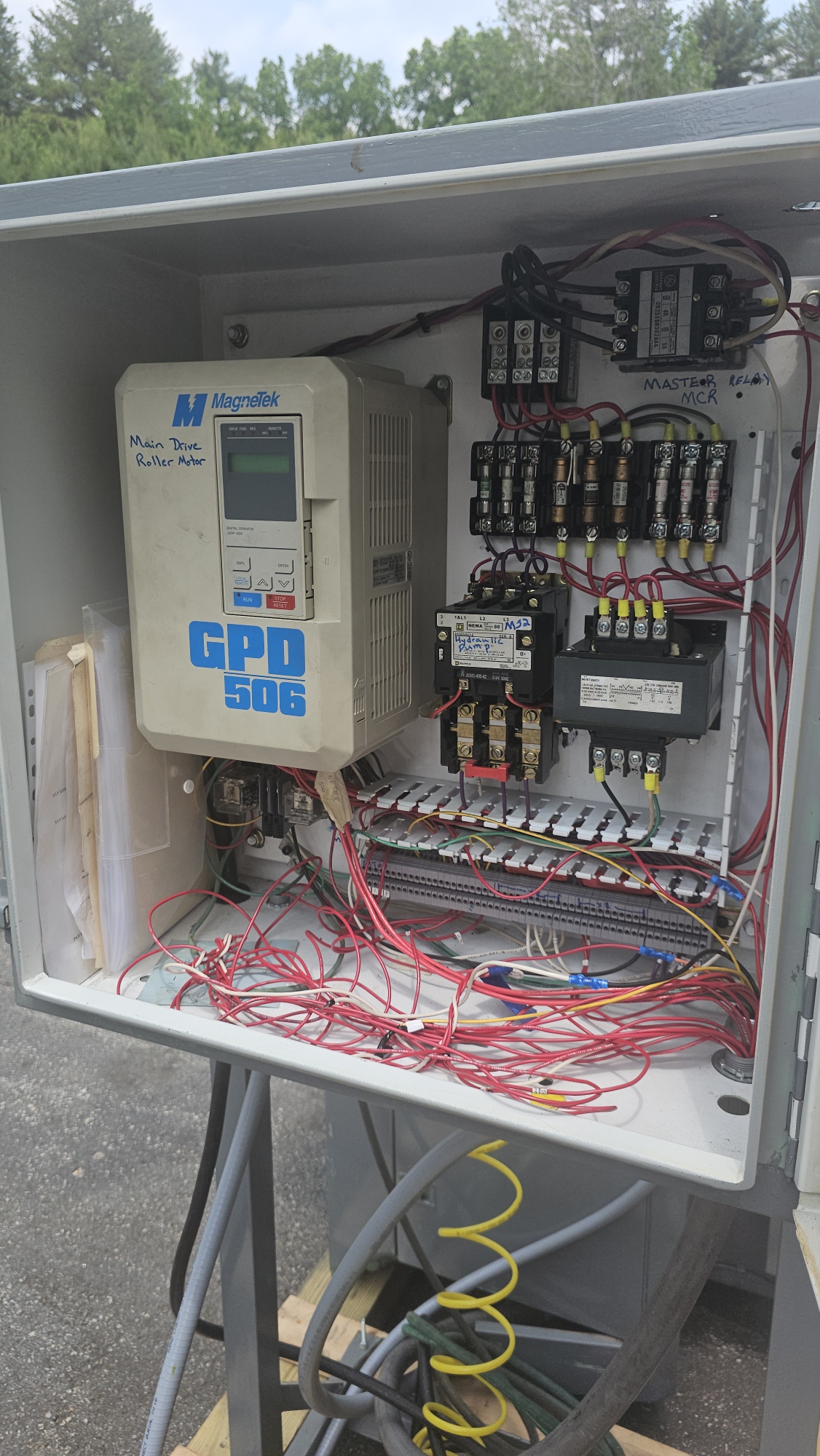

Equipped with a 32” diameter integral unwind. Automatic edge guide, Fife P-50. Unwind tension is controlled with an air-cooled brake. 3" air expanding unwind shaft. The Drive system Consists of a new single motor AC vector drive and AC 7.5HP motor. The pricing is as is, the machine was running production prior to removal.

Details

  • Listing #: 19467
  • Category: Duplex Center Slitters
  • OEM: Dusenbery
  • Width: 45.00
