Dusenbery 635

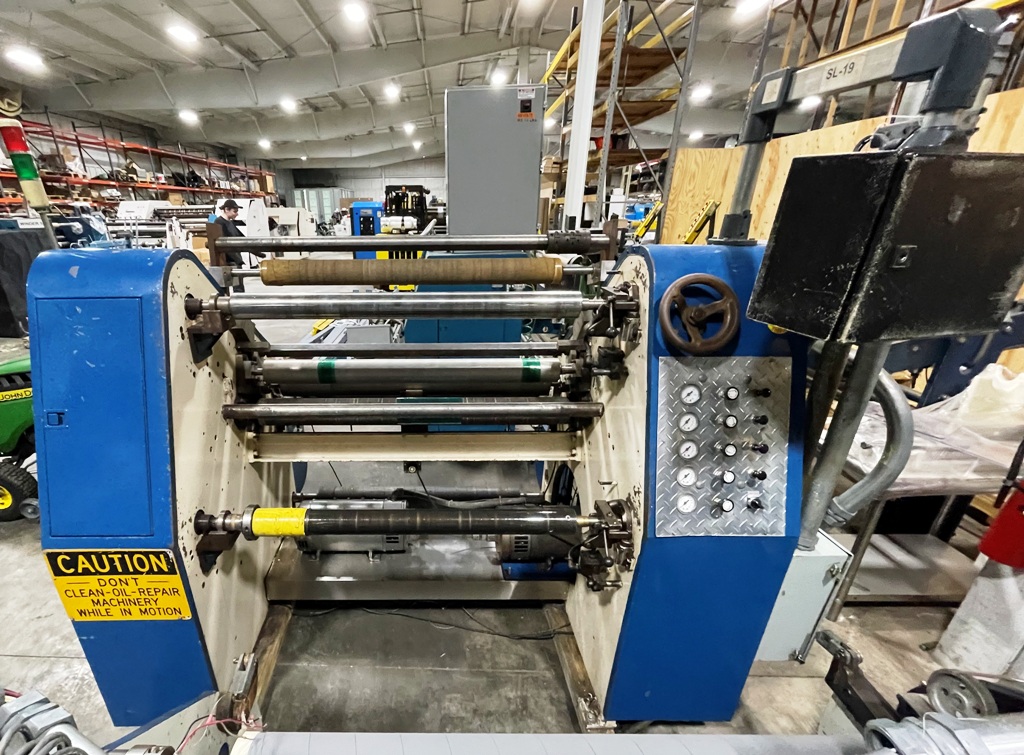

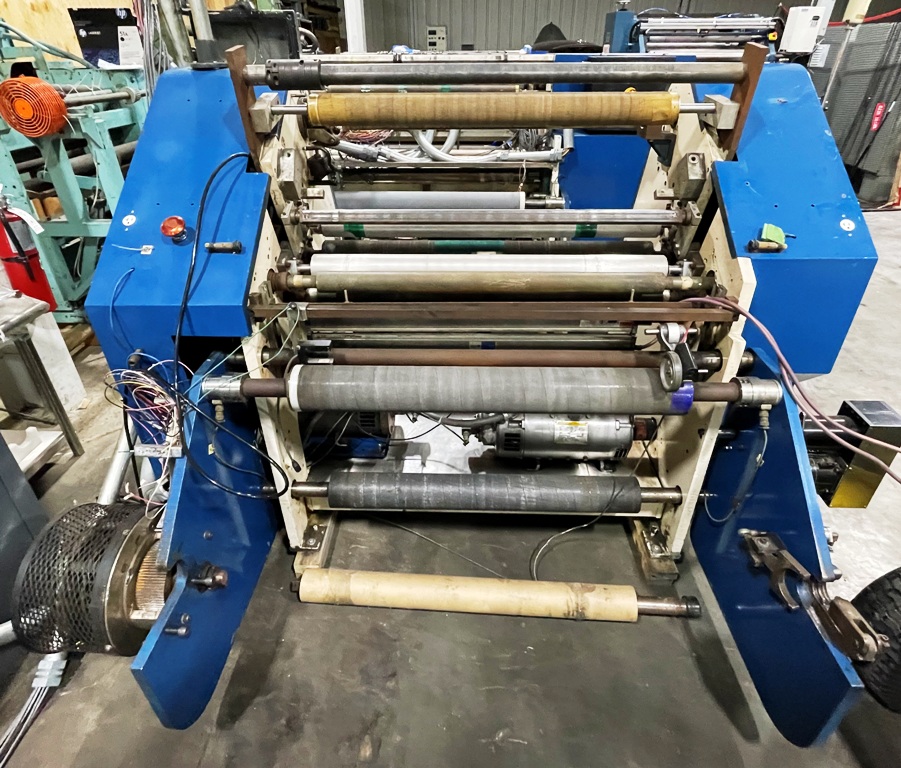

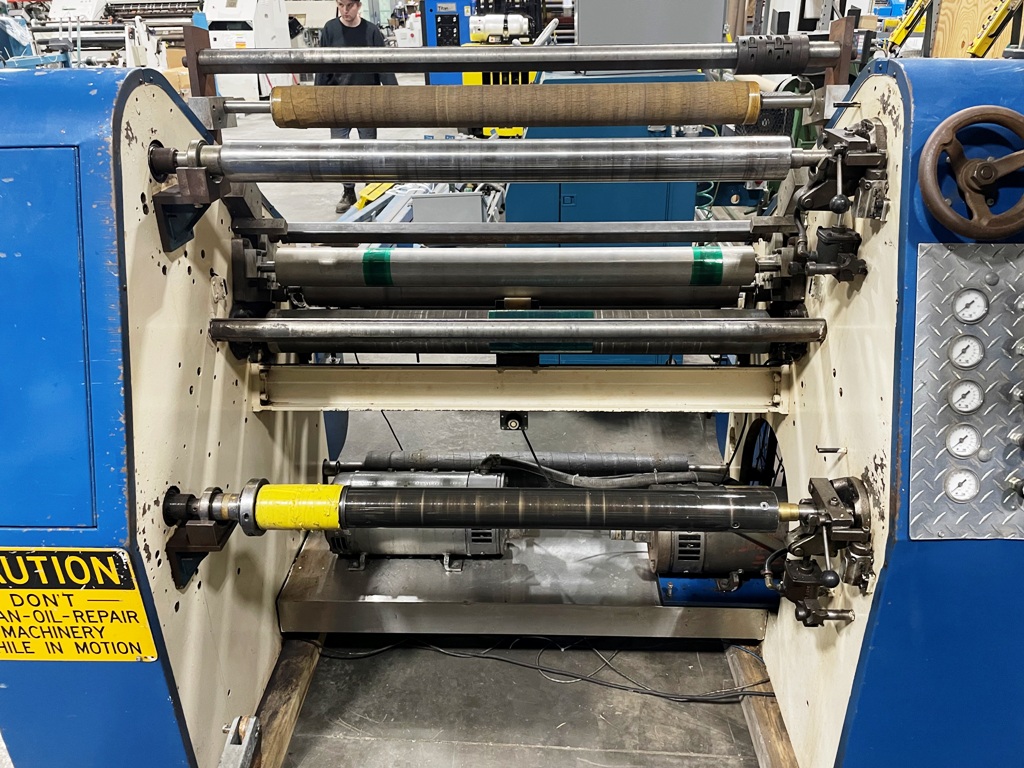

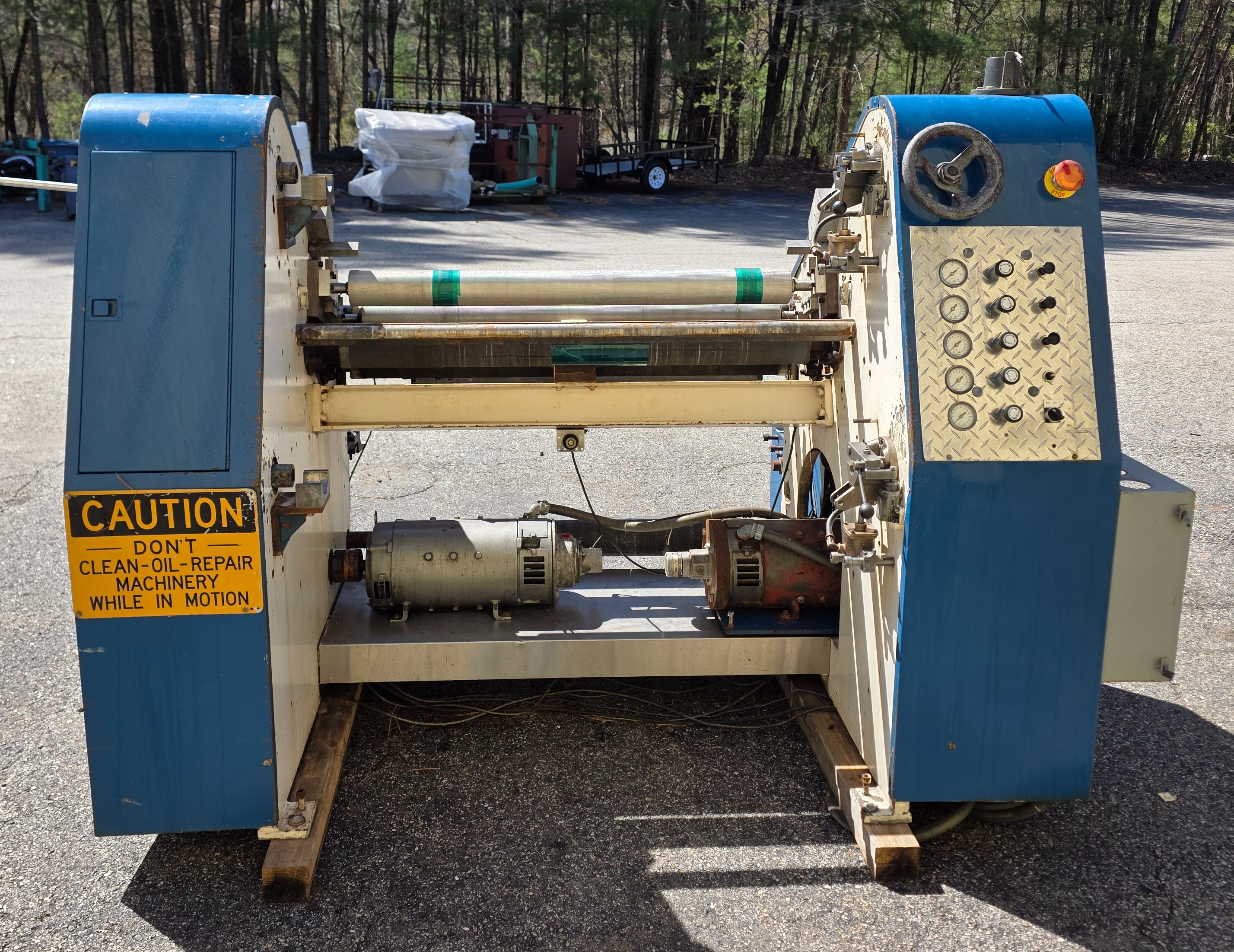

35" Dusenbery Model 635 BL slitter. Maximum rewind diameter of 24” without top riding rolls, with top riding rolls is 21”. Duplex rewind with core spacer differential rewind tension control-all the slit roll have individual tension control. Two zone individual tension control, you can run four different slit widths at the same time. 3” diameter aluminum rewind shafts. Slitting is razo cut. Maximum speed is 1000FPM. Rubberized cork covered pull rolls and idlers. Predetermining footage counter.
Equipped with a 30” diameter integral unwind. Automatic edge guide. Unwind tension is controlled with a air cooled Montalvo brake. 3" Tidland air expanding unwind shaft. The Drive system Consists of a two motor AC vector drive and control through a touch screen and PLC. This upgrade was done 5 years ago. Back up program included.
