Dusenbery 335

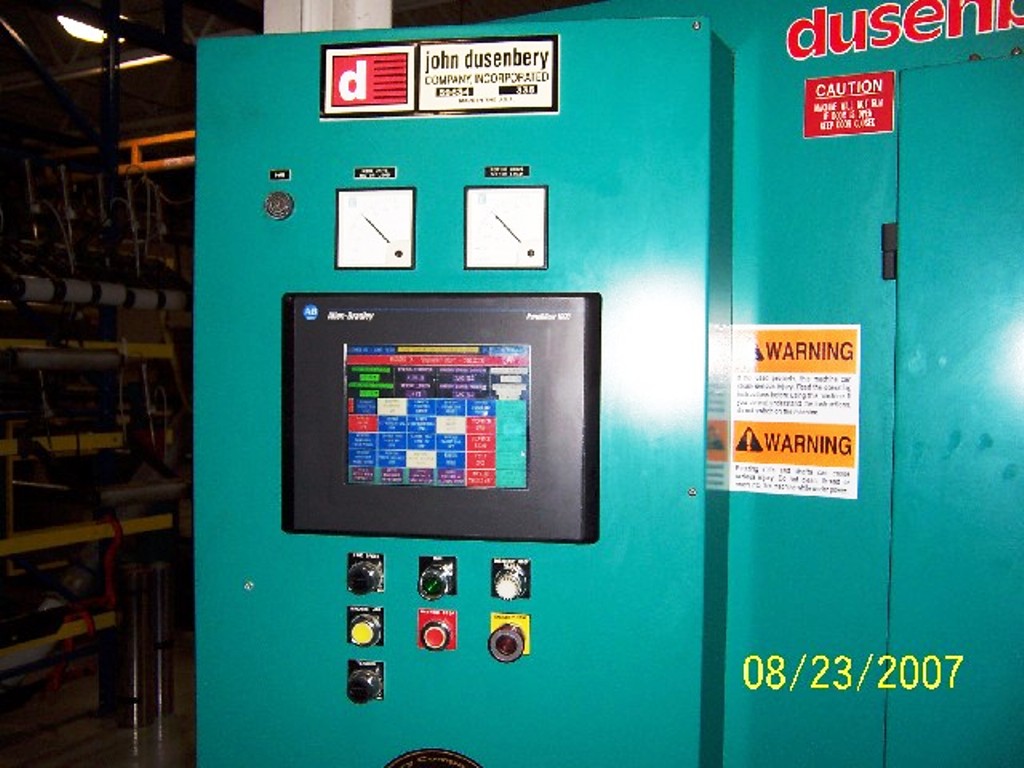

72" Used Dusenbery Model 335 Duplex Turret Slitter. This machine was purchased in 2000. The machine is driven by a two motor Eurotherm 590 Vector DC drive with an Allen Bradley SLC 500 and a Panelview 1000 Color touch. The unwind is equipped for 40" diameter rolls on either 3" or 6" cores. It is edge guided. The dual position cantilevered turret rewind will handle a 24" diameter roll on Dusenbery's spacerless low co-efficient rewind mandrels. Rolls are doffed onto an unloading tree for ease of operation. This winder will operate at speeds up to 1500 FPM and is a state of the art machine for high speed film converting. Floor plan; 15' x 15' x 7' high. Lower rewind position was modified for full web width rewinding and a roll pusher added, the pusher will handle a maximum roll weight of 300lbs. The unload tree was also modified to accept a full roll web width. A new splice table was added. Tidland class two male knife holders added. A scrap winder was added.
