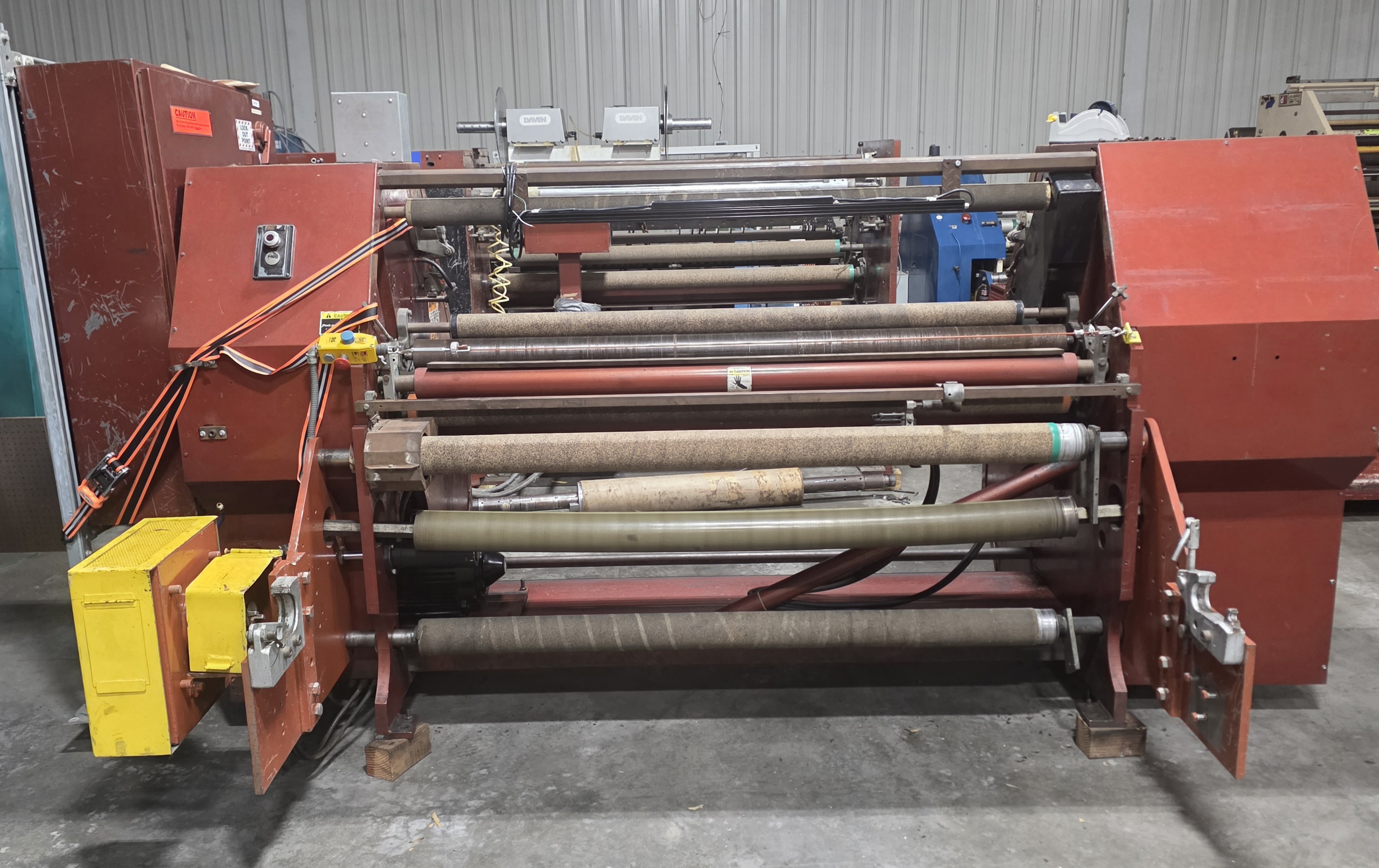

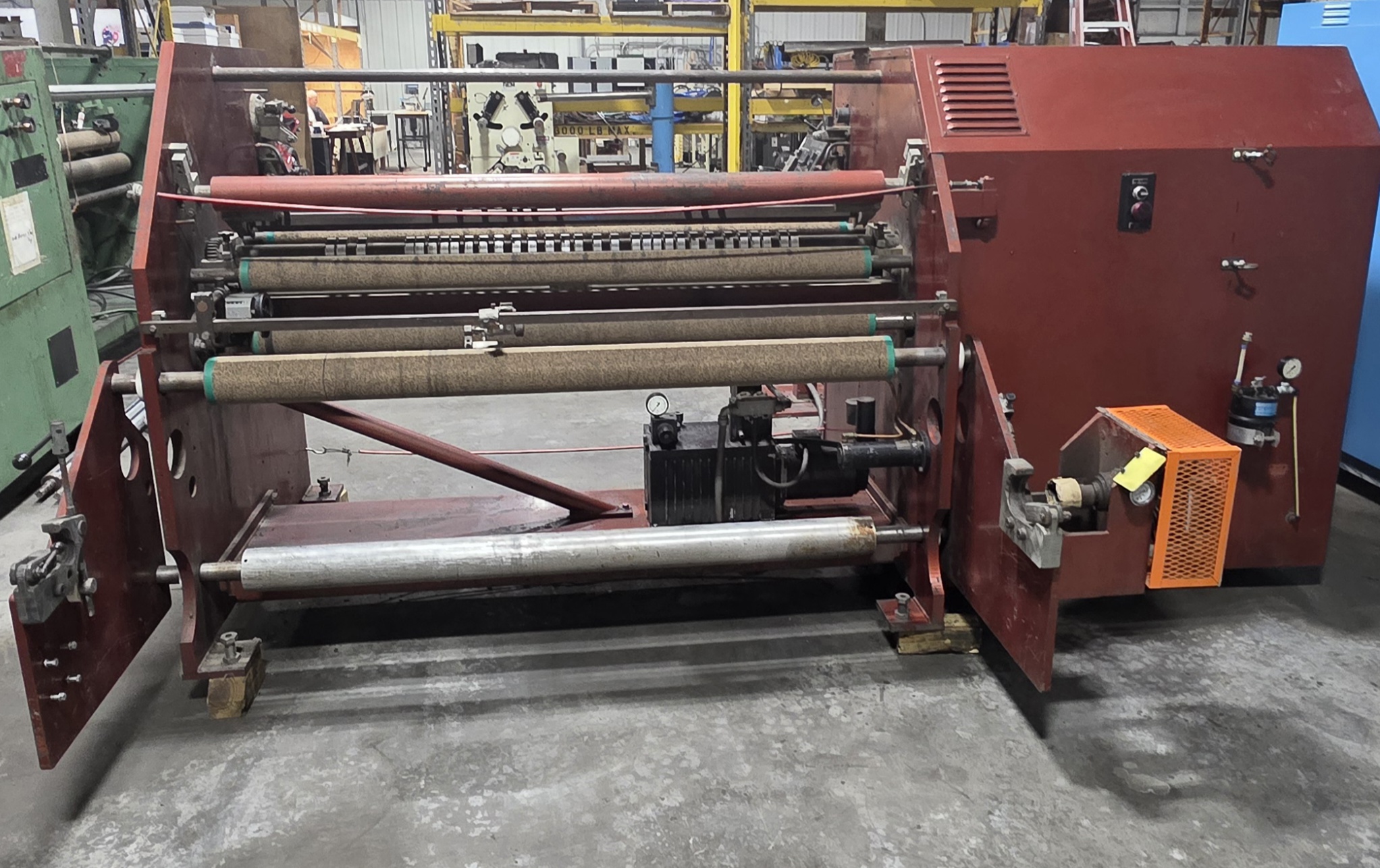

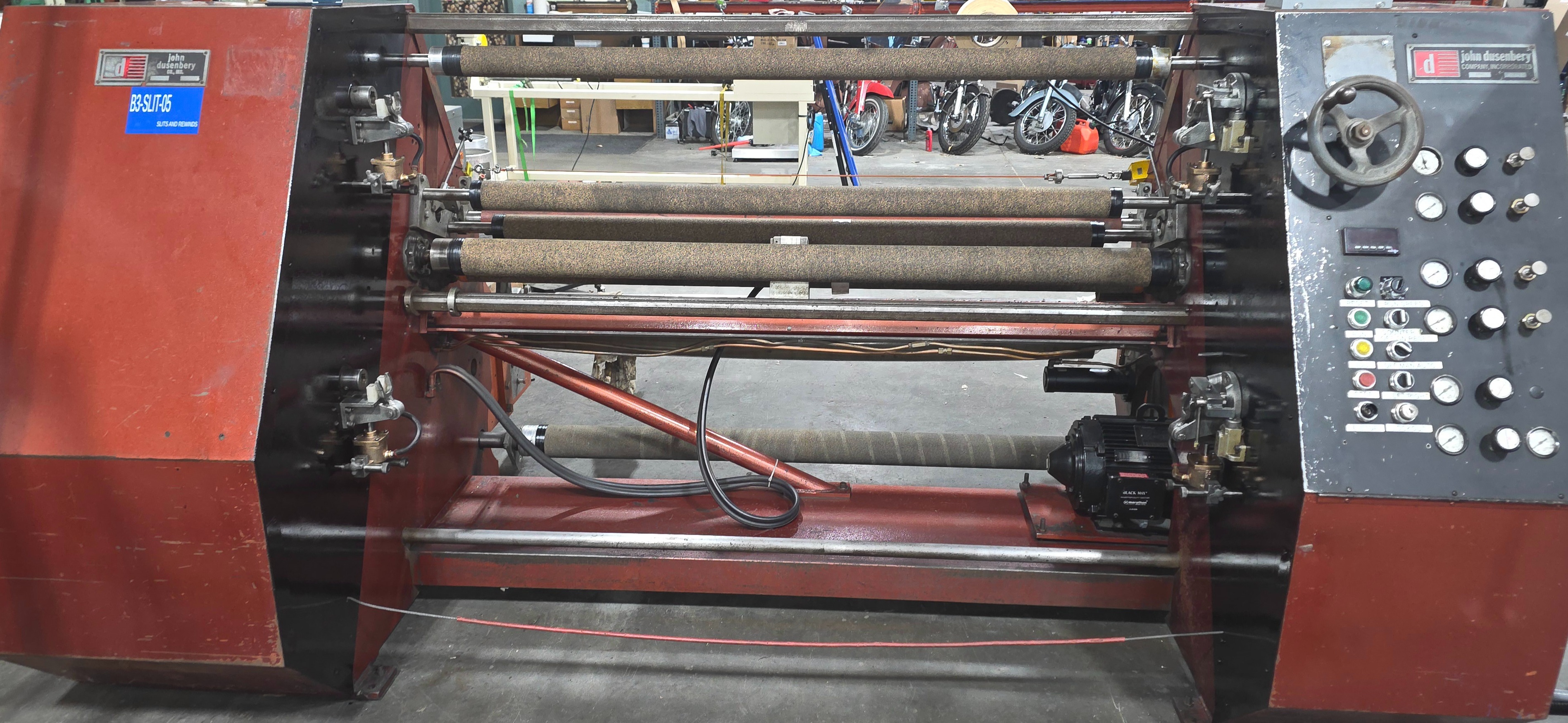

62" Dusenbery Model 10000 L-1

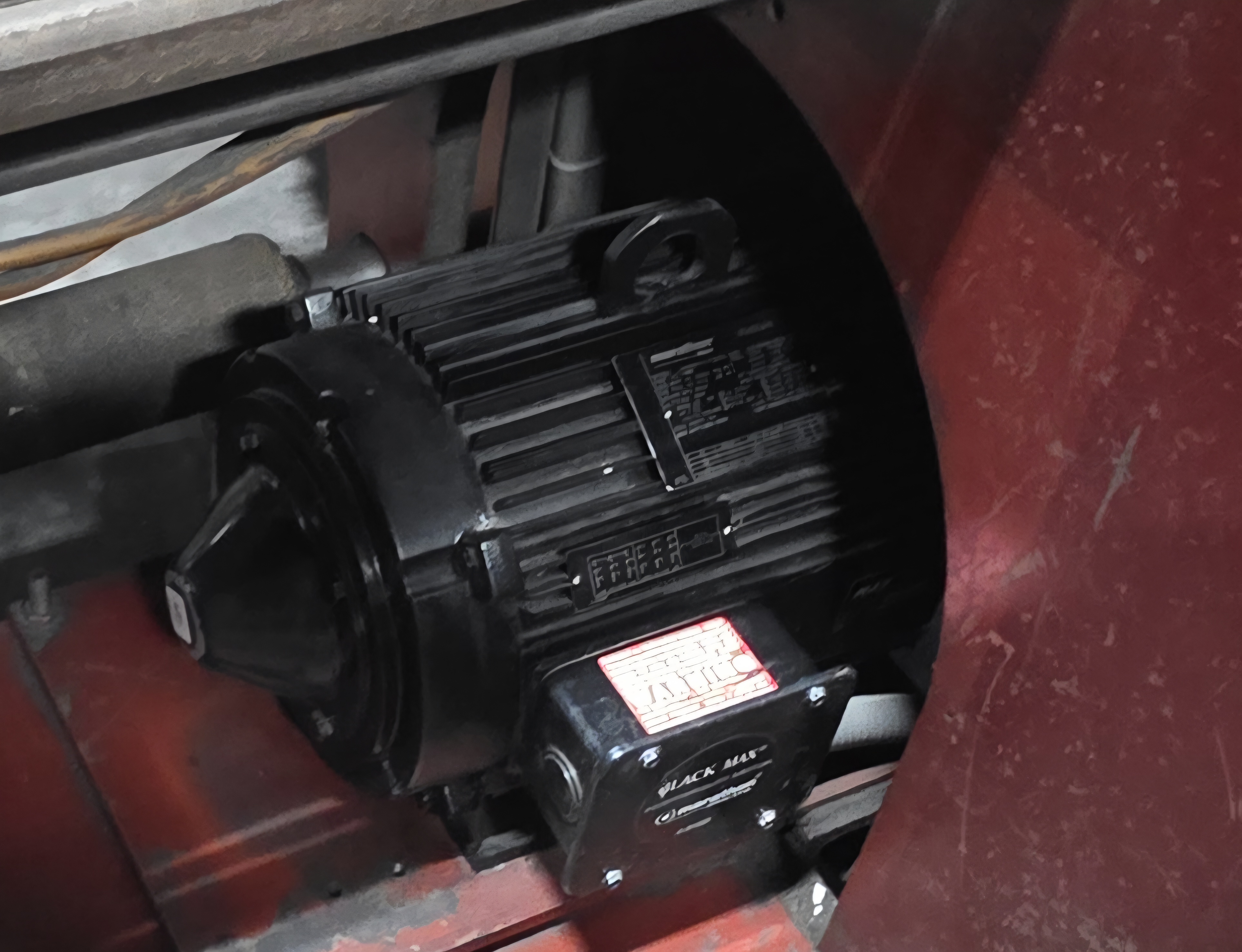

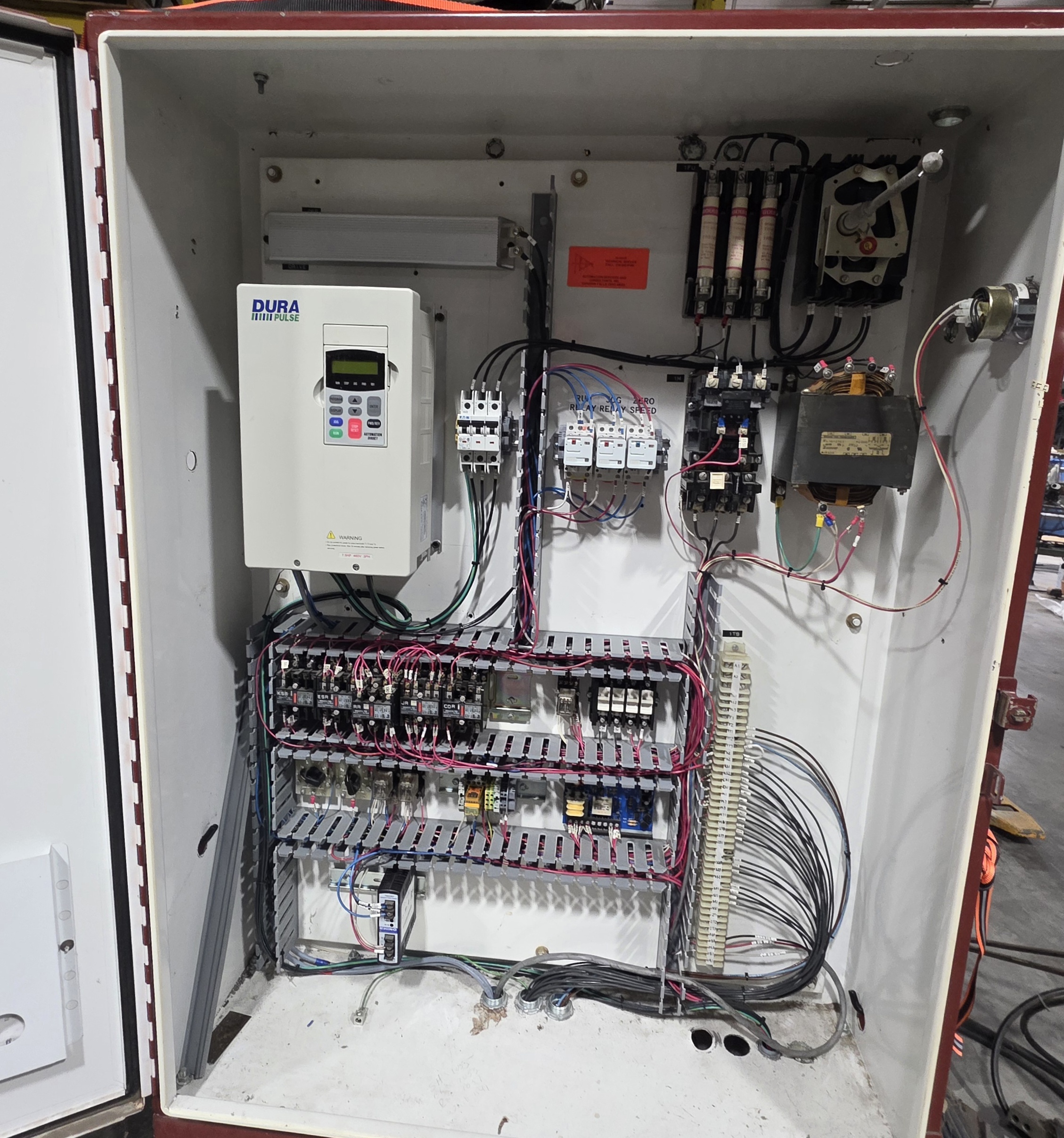

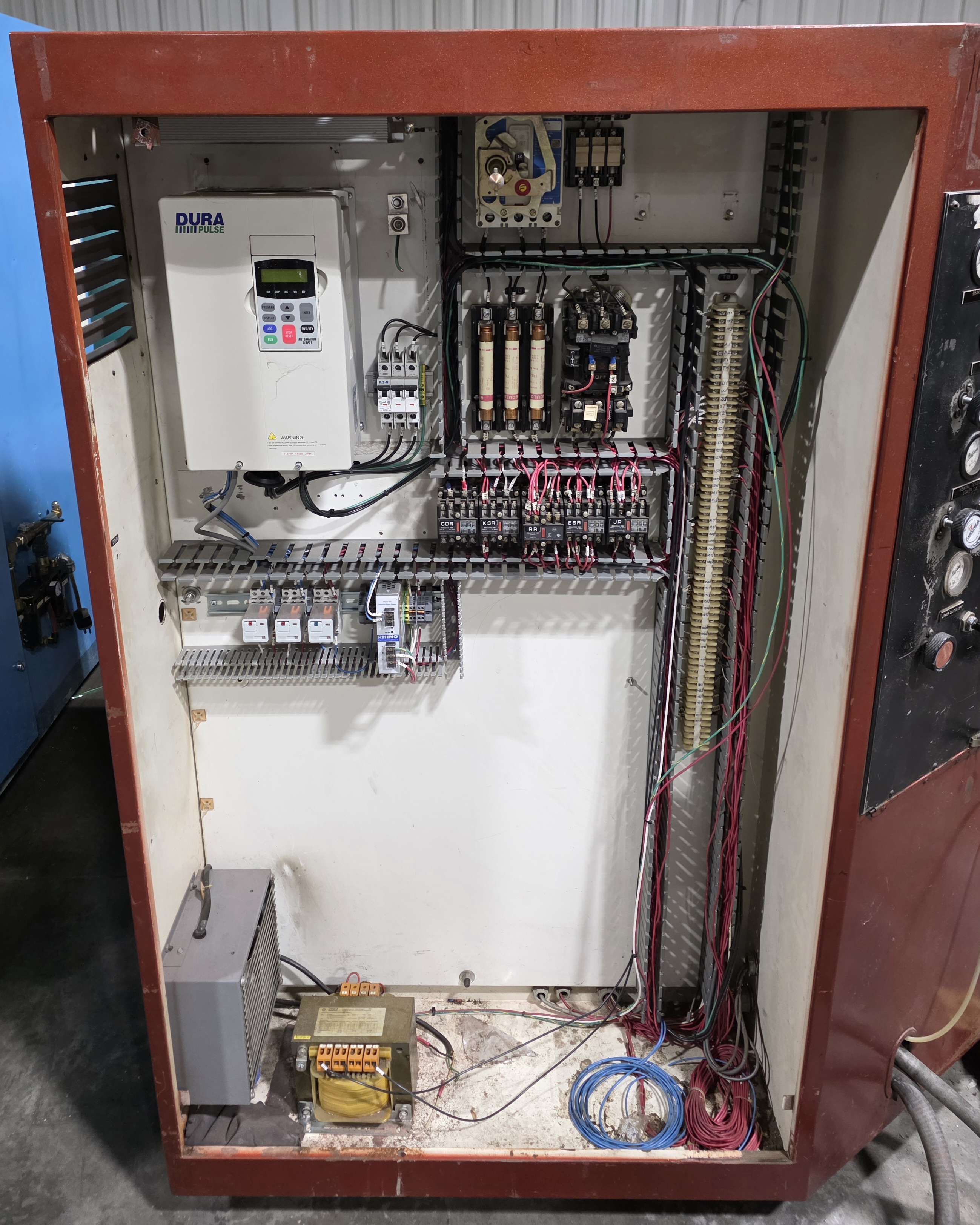

One 62" Dusenbery Model 10000 L-1 Slitter Rewinder. SN 58717. Nearly identical to the model 635. Larger unwind. These persimmon/red machines were the last and latest version of these iconic machines. They are known for versatility, small footprint, and ease of use. This machine begins with an integral unwind capable of 40" diameter rolls and a Fife pneumatic edge guide. There is bowed roll before the first pull roller. Slitting can be done in either wrap shear or tangent configuration. It can also run in either razor or rotary shear methods. We can do a modification for score slitting. Included are two 3" diameter aluminum core spacer rewind mandrels operating in either two or four zone tension zones. The rewinds are controlled by clutches allowing the machine to use pneumatic rewind shafts if applicable. The drive consists of a Dura Pulse AC control and a 7.5 HP Black Max AC motor. Normally run speeds range to 500 FPM. If we bring it under power and bring it to our "Level Three" upgrade with warranty the price is US $75,000.00.[ The quoted price is for the machine brought to level three in our facility. It does not include the cost of parts such as knives, certain shafts or spacers.] 480 V 3 phase.
