Used Slitters

62" Dusenbery Model 635 Slitter Rewinder

Images

Description

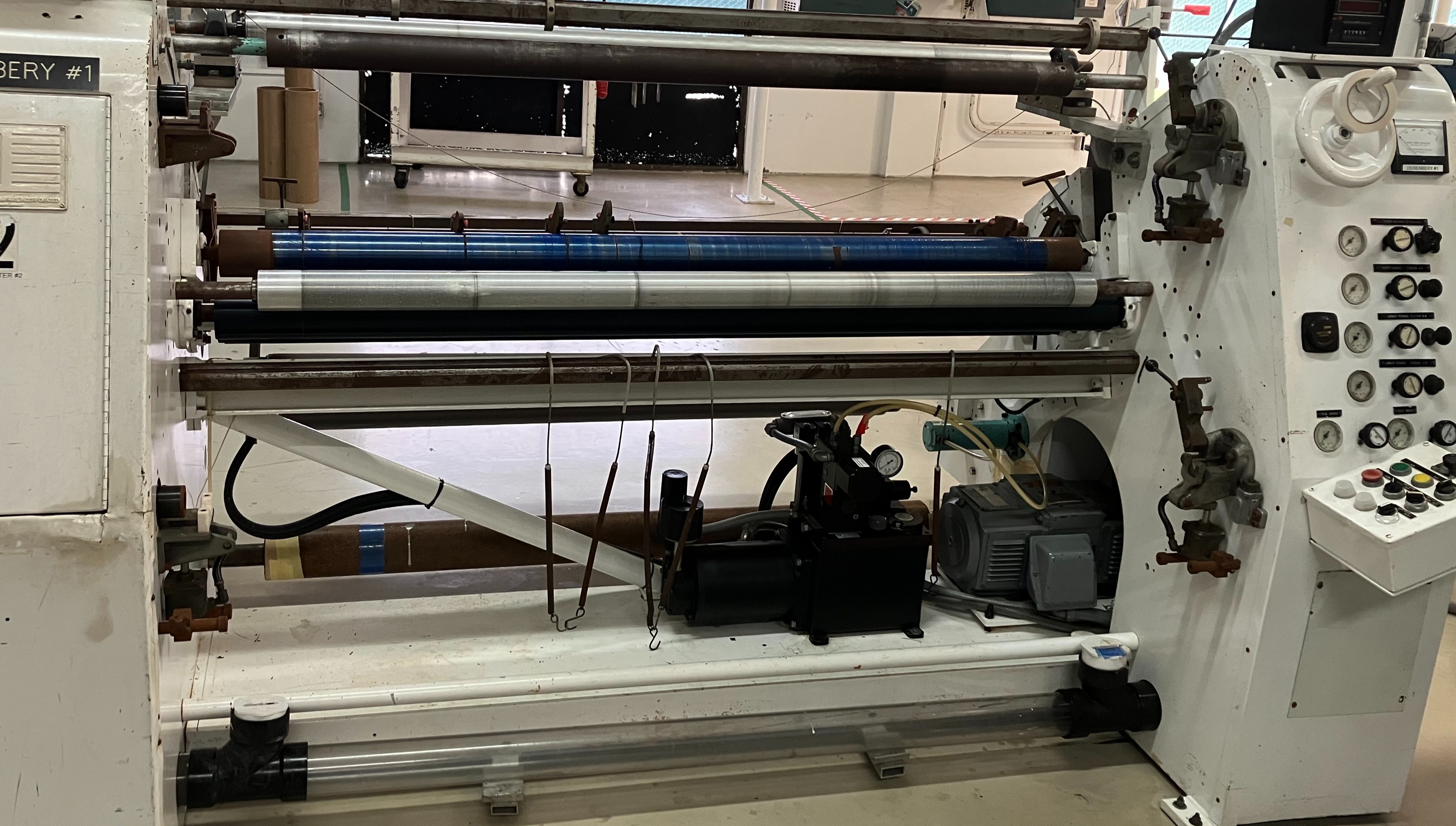

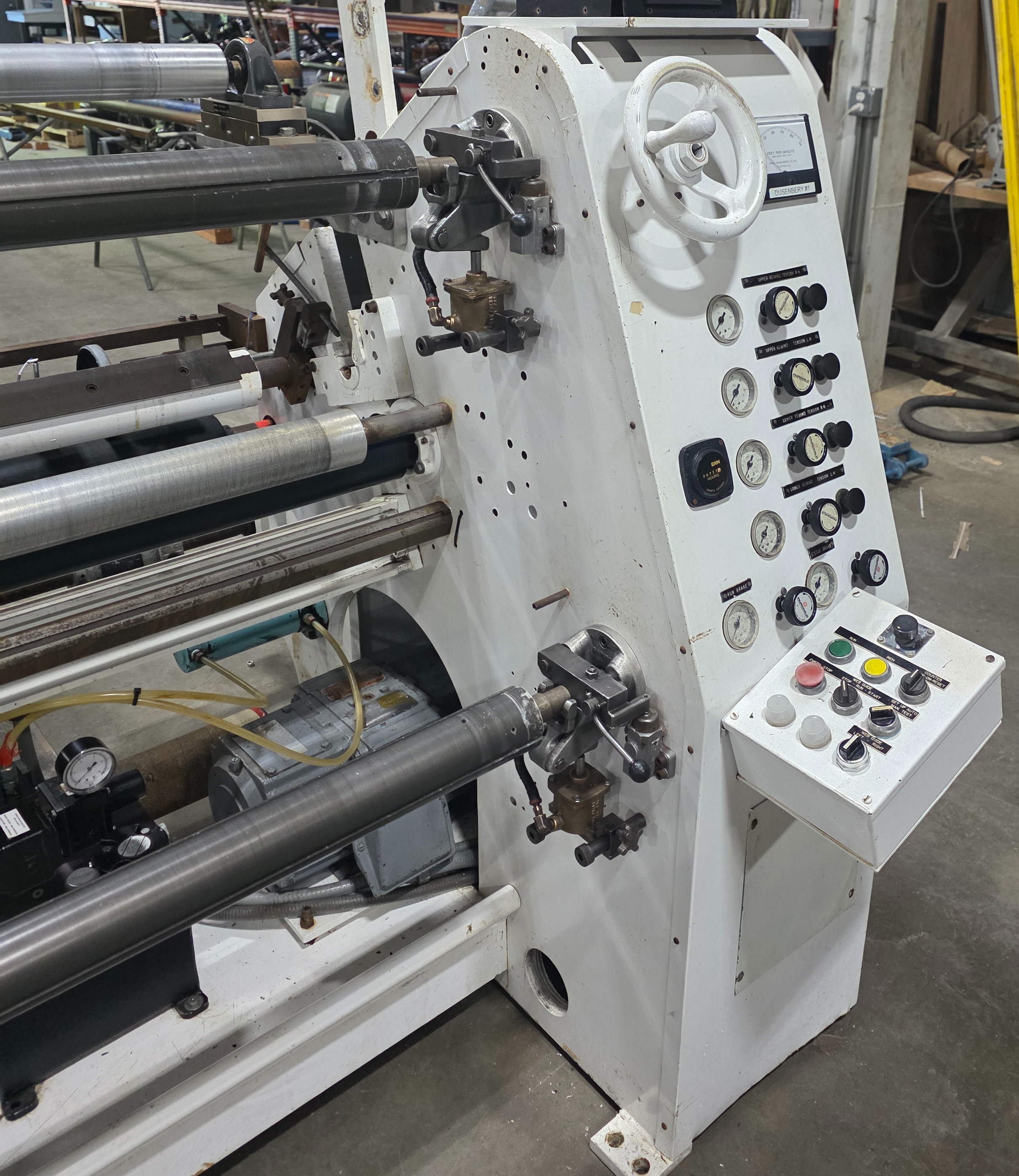

One 62 inch Dusenbery Model 635 Slitter Rewinder. (Two matching machines available).  Twenty four inch (24") maximum rewind diameter, 21 " with top riding idlers. Driven by Reliance V/S 7.5 HP 480/240 drive. Running when removed and very clean. Equipped with two three inch (3") aluminum slipping differential rewind mandrels for core/spacer rewinding. Both machines have dovetail mount holders for razor and/or shear slitting. All necessary parts for slitting available in our parts department. These machines can comfortably slit to 1/2 inch up to 62 inches. The unwind in integral to the machine and will handle a 32 inch diameter roll into the machine. We also have a stand alone unwind option with load cells and larger OD. See Benick machine #20054.  The unwind uses a three inch pneumatic shaft with an air brake. Unwind is also guided with a Fife edge guide. Maximum speed is 500 FPM. Benick sells all the parts, knives and spacers for these machines. The quoted price is buying the machine from our floor "as is where is." Our fee to bring it under power repair or replace any parts considered overly worn or defective, clean it and show video of it running adds US$15,000.00. This includes a warranty.

Details

  • Listing #: 20047
  • Category: Duplex Center Slitters (Two Rewind Shafts)
  • OEM: Dusenbery
  • Width: 62.00
