Used Slitter Rewinders

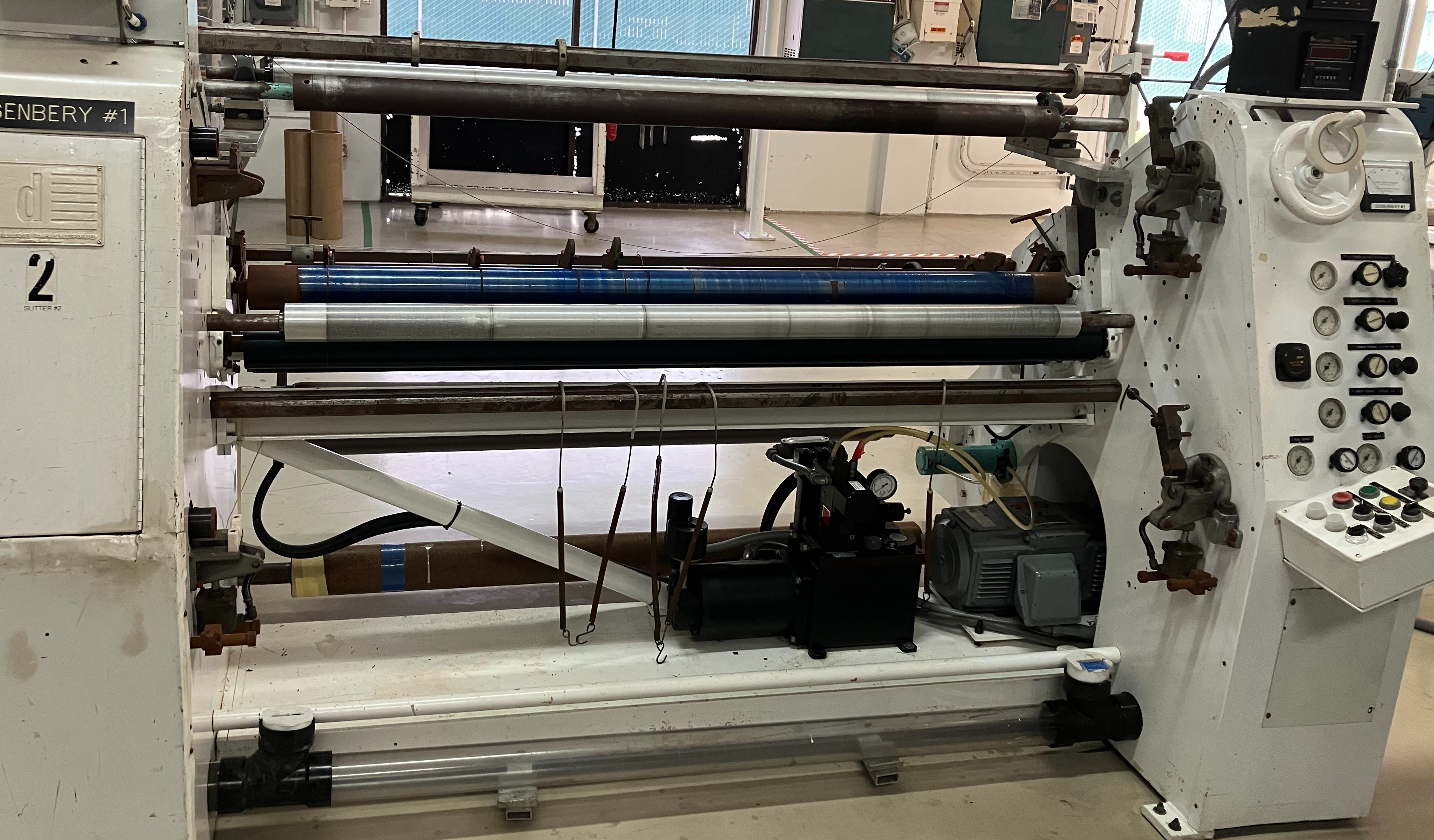

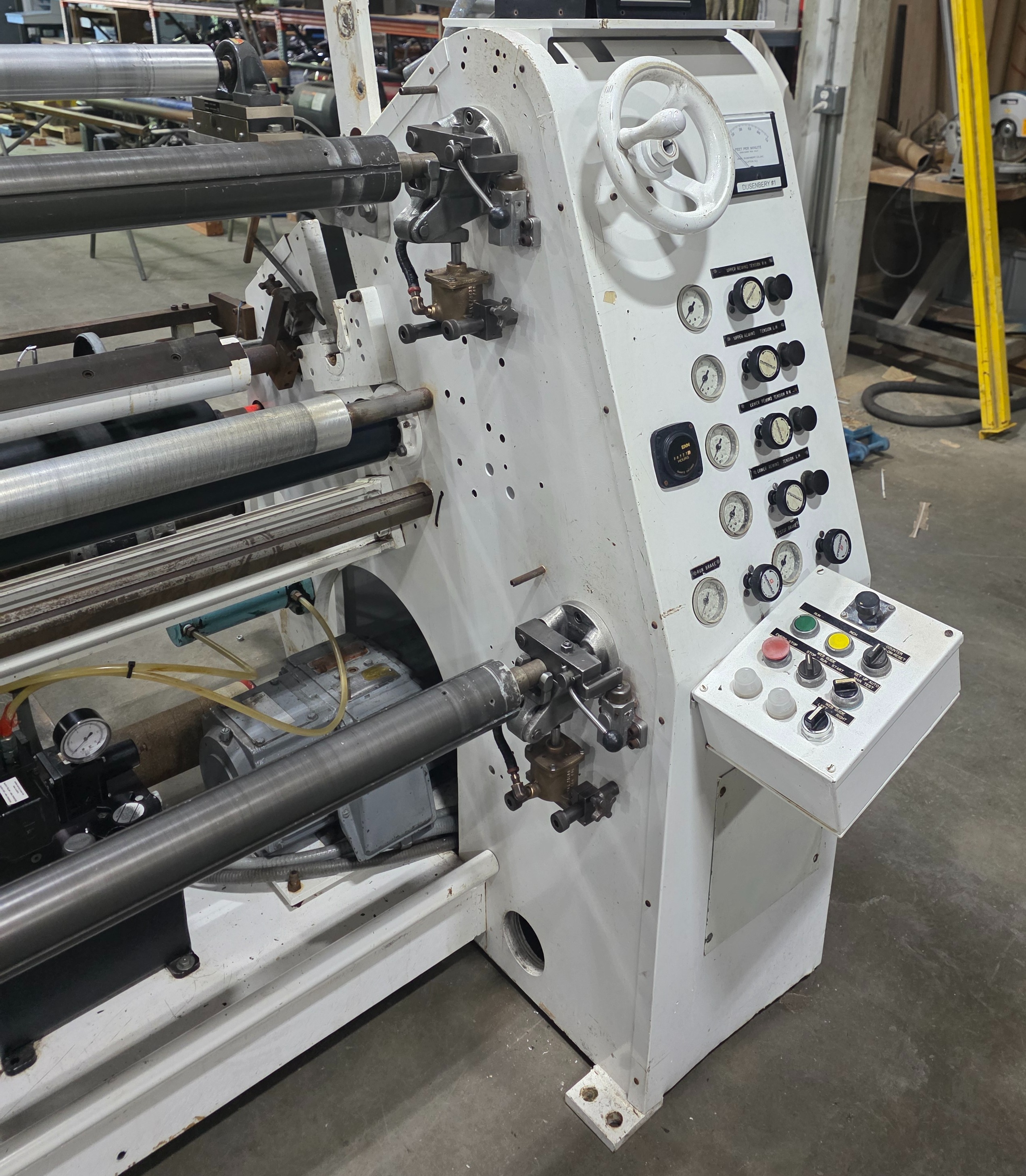

62" Dusenbery Model 635 Slitter Rewinder
Images
Description
One 62 " Dusenbery Model 635 Slitter Rewinder. (Two matching machines available). 24" maximum rewind diameter, 21 " with top riding idlers. Driven by Reliance V/S 7.5 HP 480/240 drive. Running when removed and very clean. Equipped with two 3" aluminum slipping differential rewind mandrels for core/spacer rewinding. Both machines have dovetail mount holders for razor and/or shear slitting. These machines can comfortably slit to 1/2 " up to 62". The unwind is integral to the machine and will handle a 32 " diameter roll into the machine. We also have a stand alone unwind option with load cells and larger OD. See Benick machine #20054. The unwind uses a 3" pneumatic shaft with an air brake. Unwind is also guided with a Fife edge guide. Maximum speed is 500 FPM. Benick sells all the parts, knives, and spacers for this machine. The quoted price is buying the machine from our floor "as is where is." Our fee to bring it under power repair or replace any parts considered overly worn or defective, clean it and show video of it running adds US $15,000.00, which includes a warranty.
Details
- Listing #: 20046
- Category: Duplex Center Slitters (Two Rewind Shafts)
- OEM: Dusenbery
- Width: 62.00
