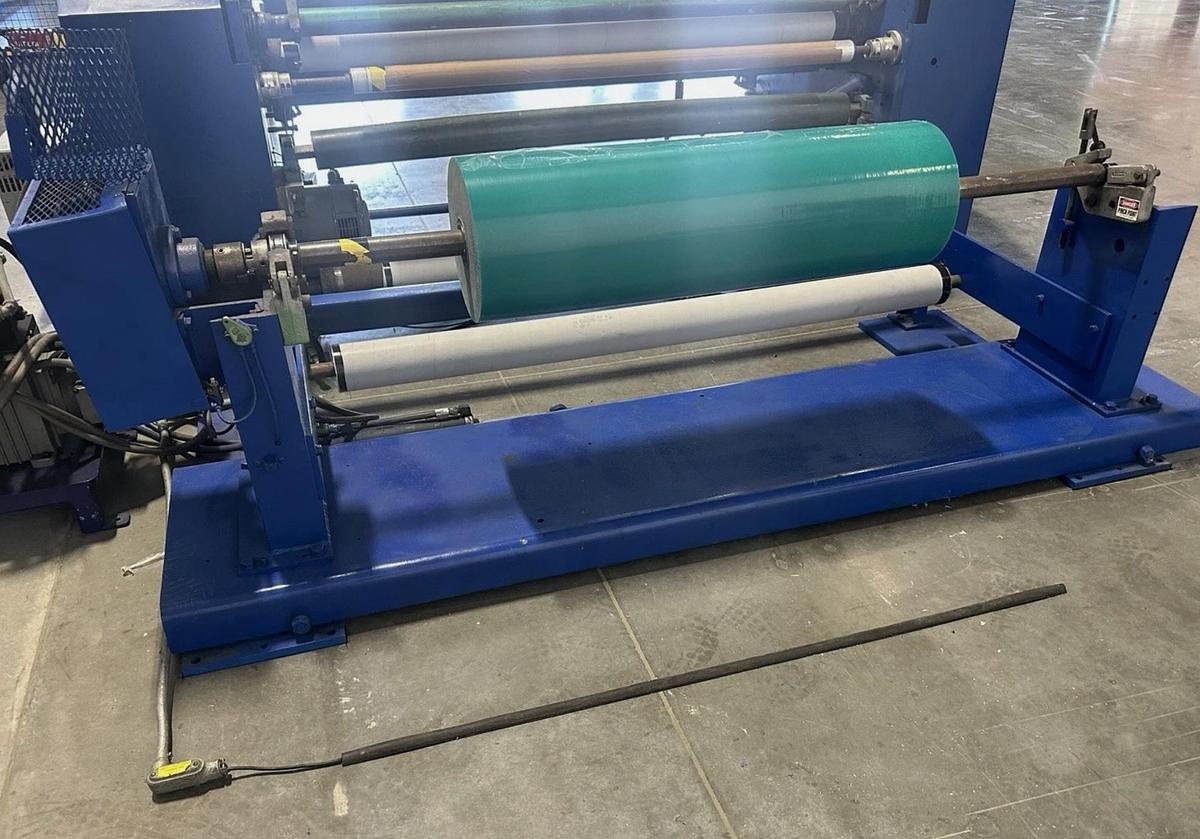

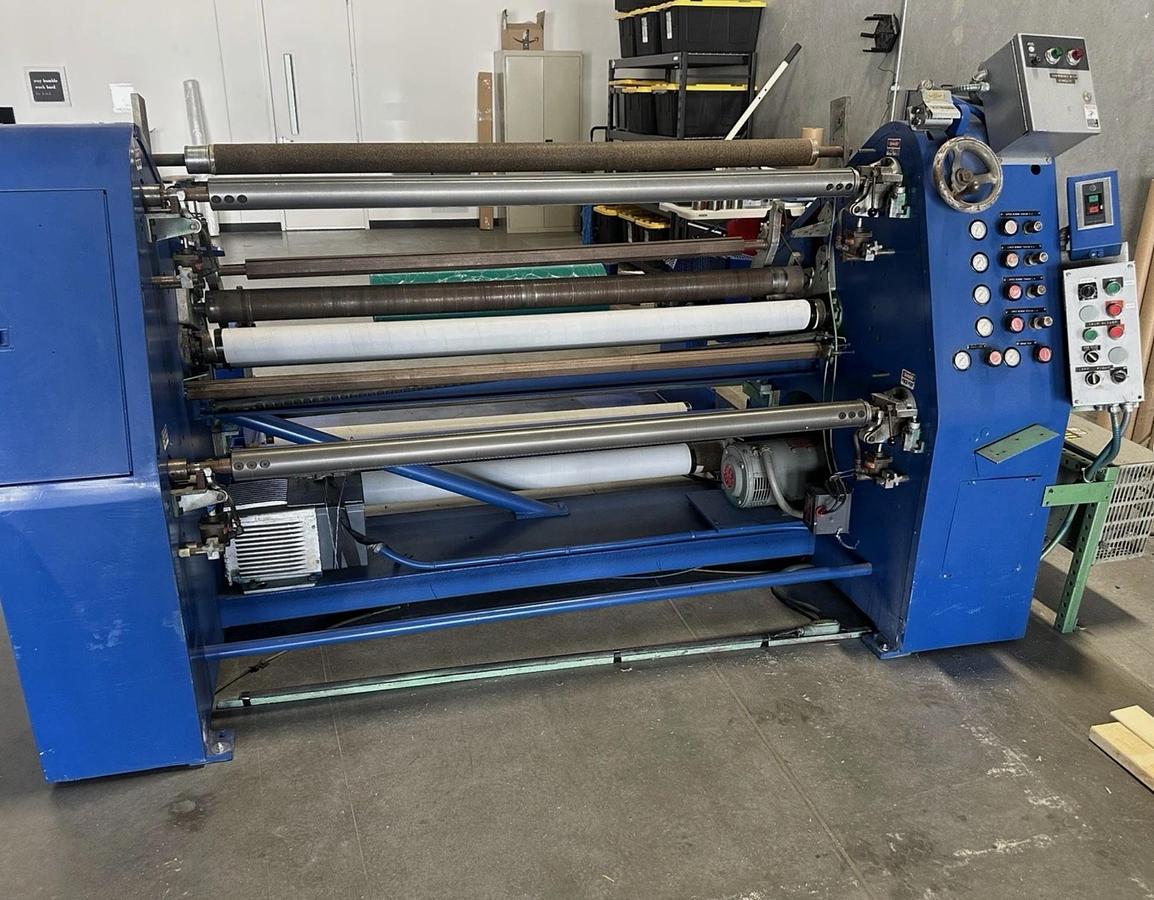

62 "Dusenbery 635

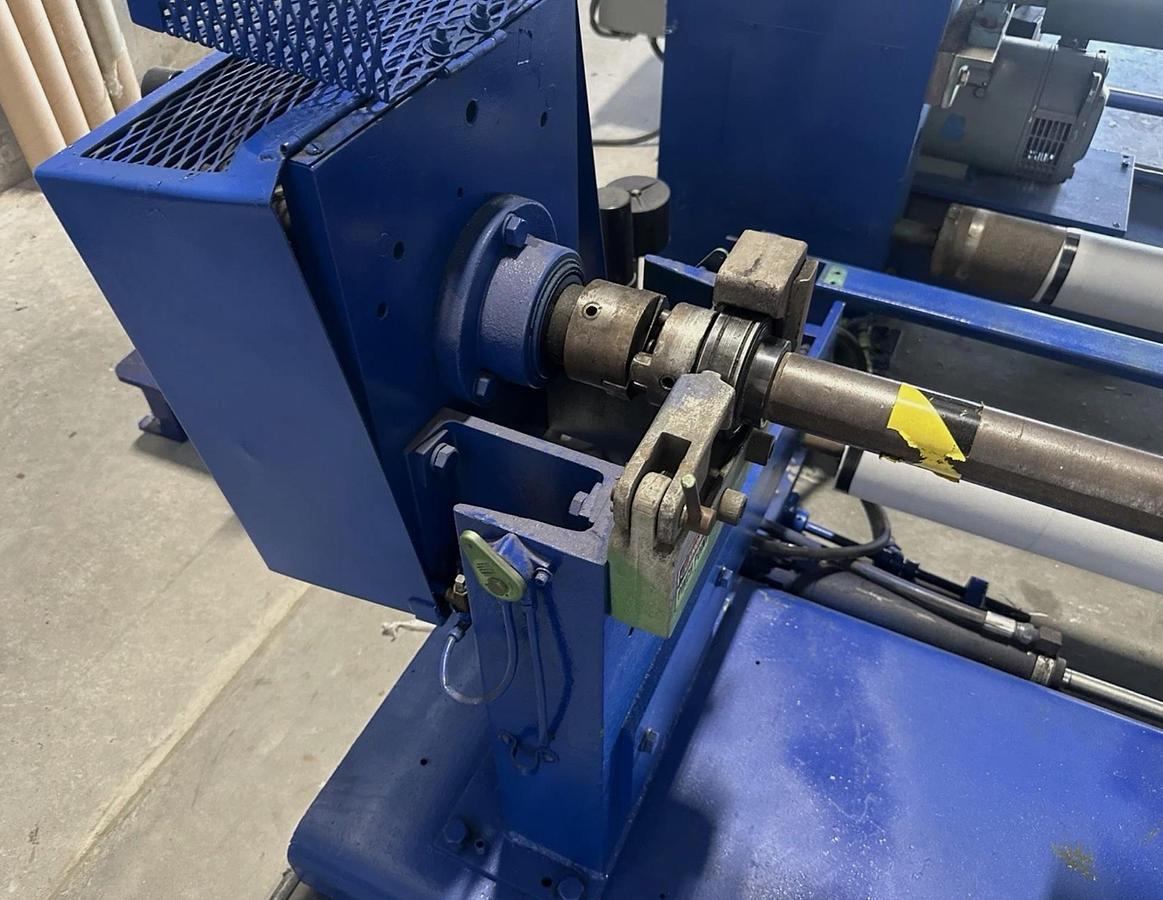

One 62" Wide Dusenbery Model 635 Duplex Slitter Rewinder. Equipped with a 40" max diameter shafted unwind and 3" air shaft, Air cooled brake. and automatic edge guide. Slitting is razor in groove and can be modified to shear. Speed: 500 fpm max mechanical speed. Cork covered pull rolls.

The rewind diameter2 is 24" without lay on rollers and 21" with lay on rollers. Slipping differential using core/spacer method with 3" diameter shafts. 7.5 HP DC motor and a main drive controller

480V, 3 Phase
