62 inch Dusenbery Model 835 Duplex Slitter Rewinder

Images

Description

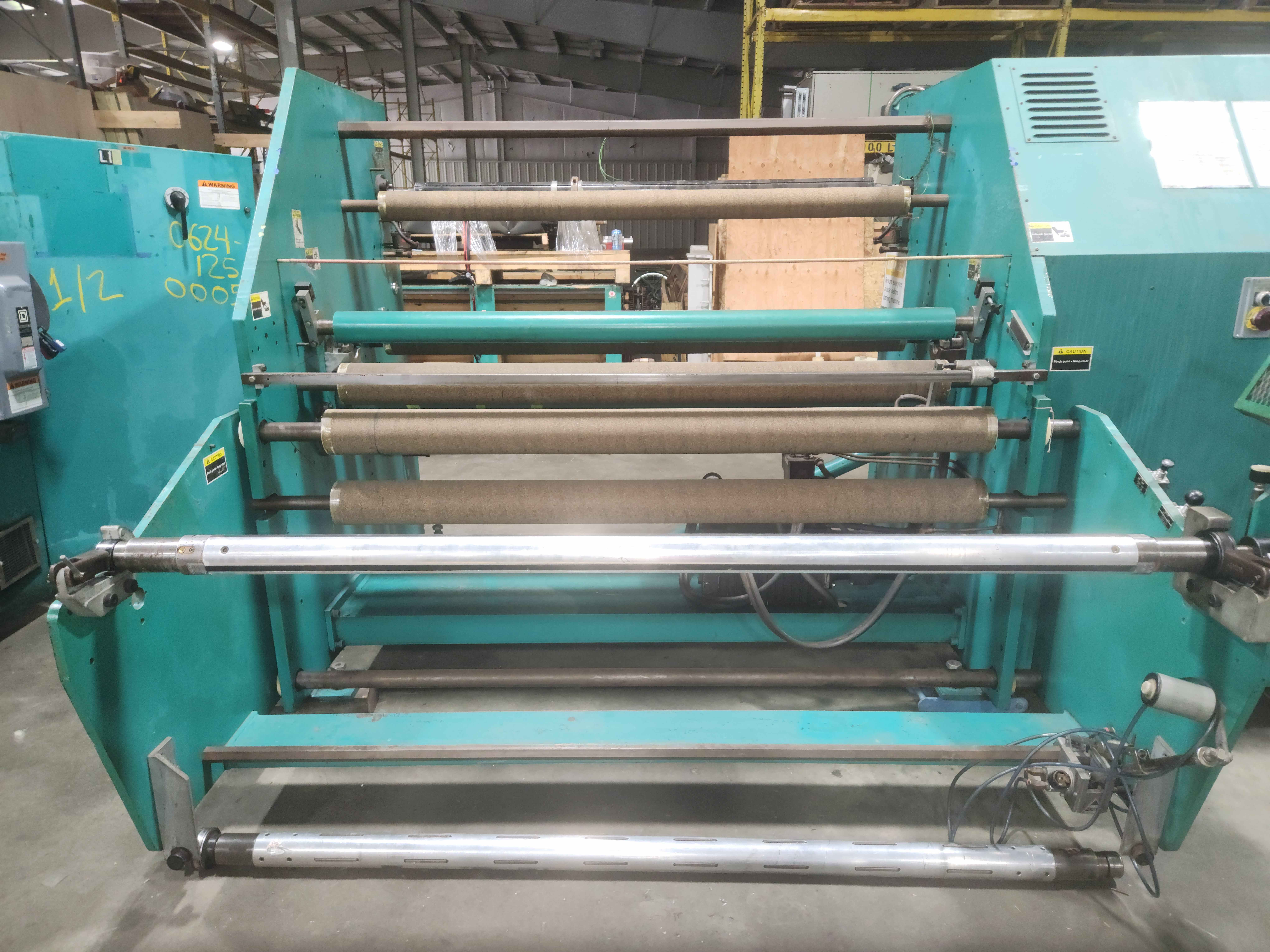

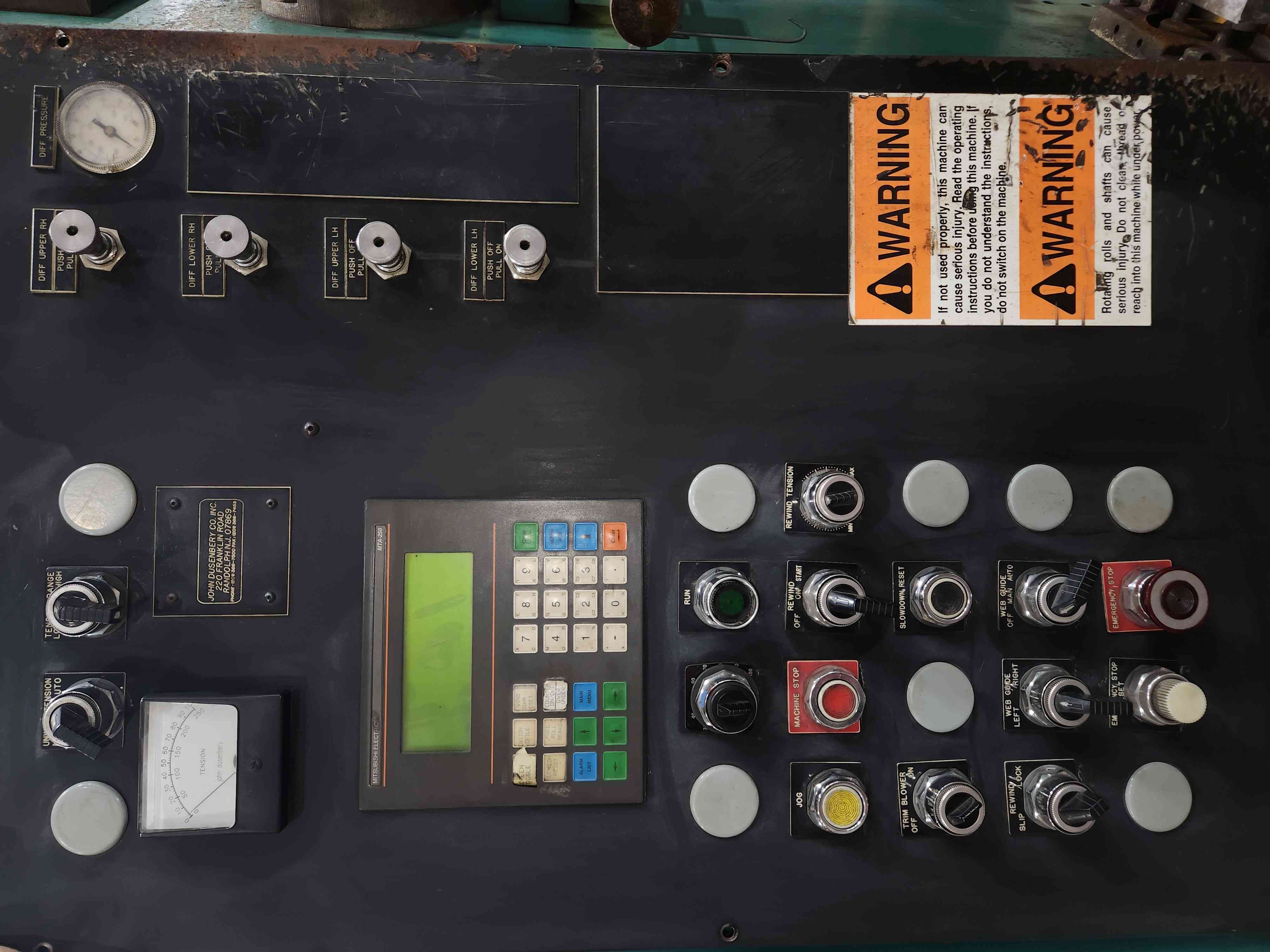

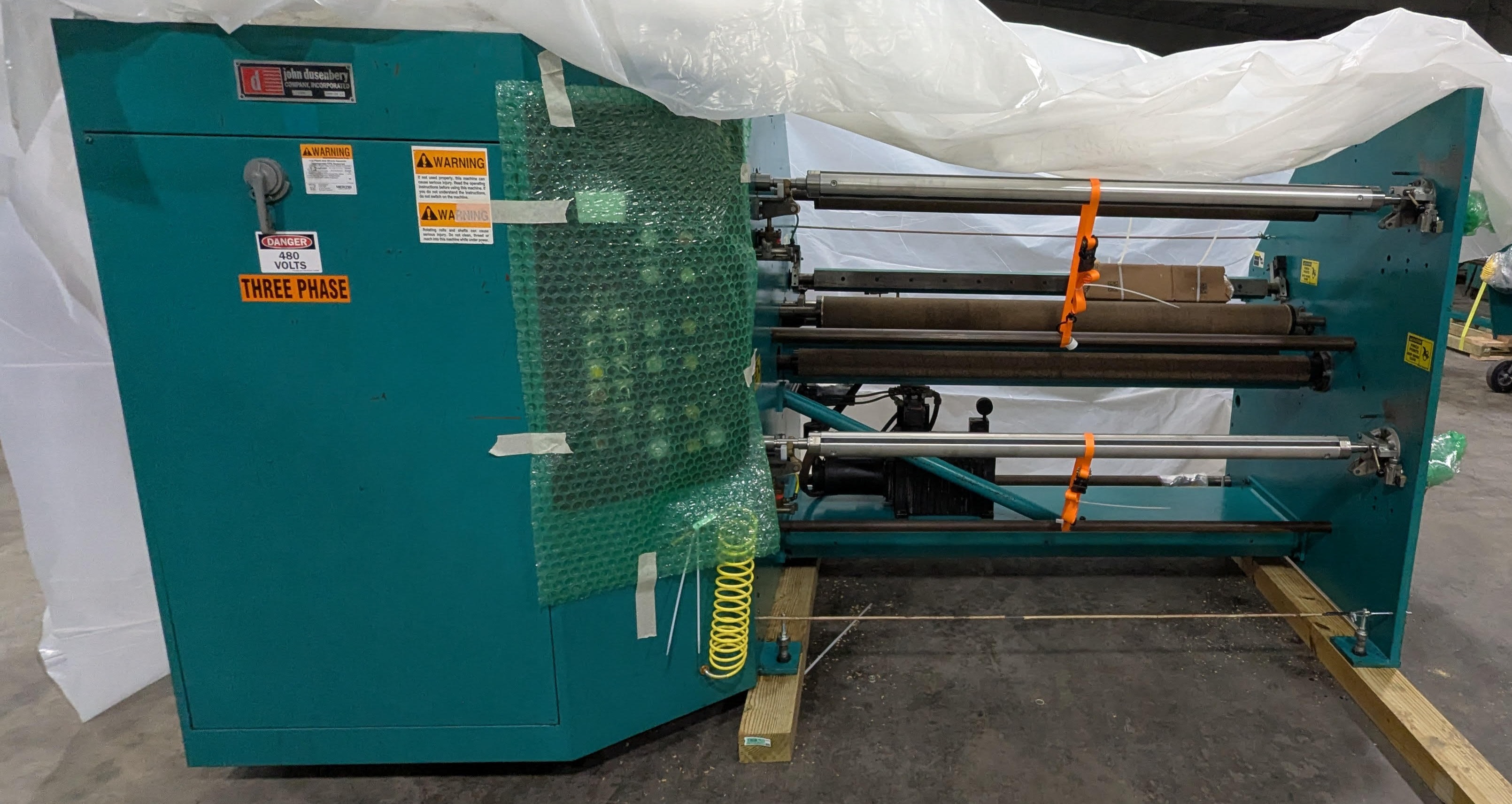

One 62 inch Dusenbry Model 835 Duplex Slitter Rewinder. Equipped wwith a "stand alone" 40 inch diameter unwind using a Fife MD P-24 with three inch pneumatic shaft and a 10 inch Montalvo pneumatic brake. Equipped with two core/spacer rewind mandrels for three inch cores. Benick sells adaptors for six inch cores as well. The machine also has four tension zones, with the taper profile automatically controlled by Mitsubishi FX 440 through a Mitsubishi HMI. The rewind can currently make a 24 inch diameter roll with or without top idlers, and with a minor modification can wind 30 inch diameter without top idlers. The drive system consists of a two motor DC drive with 10 HP main and 20 HP rewind. US Motors. The drives are Sprint DC and the machien is running on our floor. It needs our level three service as it needs a good cleanning and going over. We repair or replace worn or defective parts. We do not warranty used electonics or motors. The machine can be set up for either shear or razoer slitting. The photos are from a sister machine already cleaned.

Details

  • Listing #: 20017
  • Category: Duplex Center Slitters
  • OEM: Dusenbery
  • Width: 62.00
