Used Slitters

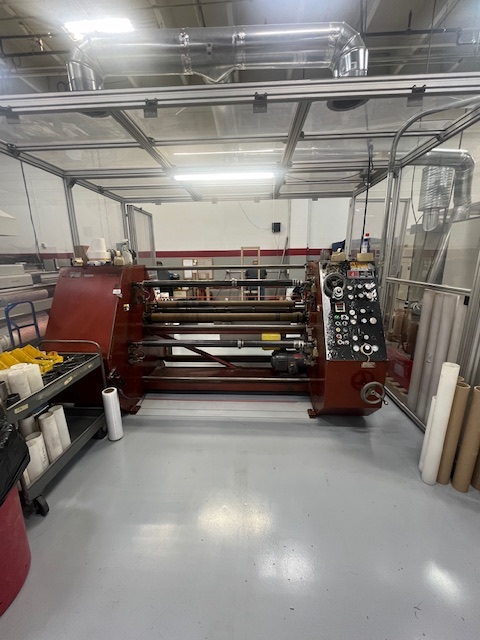

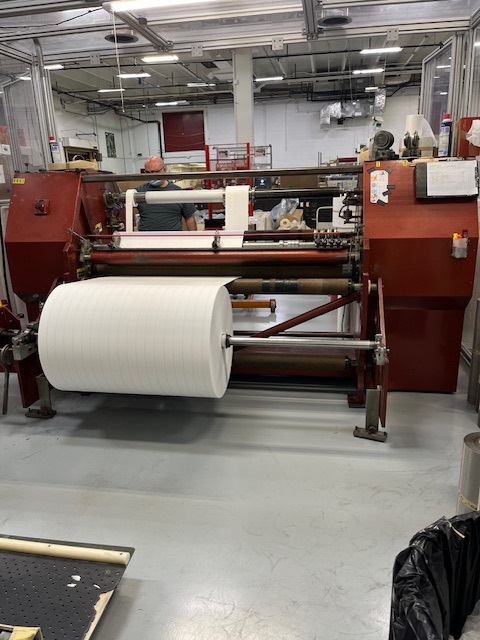

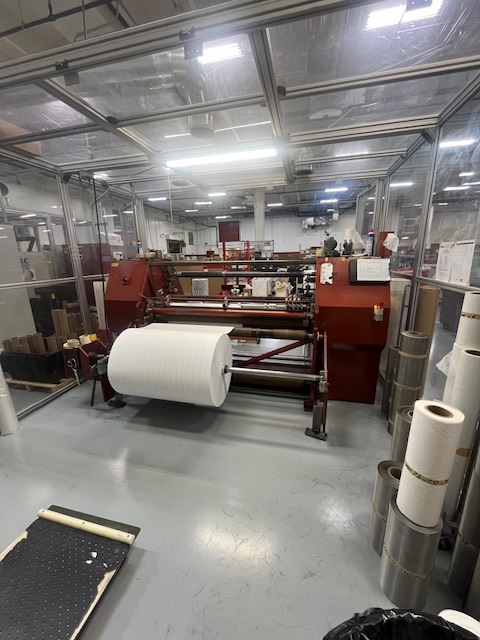

62 inch Dusenbery model 635 slitter rewinder.

Images

Description

62 inch max width Dusenbery model 635 Duplex slipping differential slitter rewinder. Equipped with a 40 inch diameter unwind with pneumatic air shaft and pneumatic brake.   The machine comes with a 7.5 HP DC main drive and drive motor for speeds to 500 FPM. May be set up for razor and shear slitting. The three inch rewind shafts use the core/spacer method. The tension profile is manual and Benick can upgrade to a small PLC and HMI for automatic tension profiling. Machine can be purchaced running on our floor with a limited warranty. Call Paul Morrisette for price, details, and application questions. 460 V. Dimentions appx in feet.

Details

  • Listing #: 20016
  • Category: Duplex Center Slitters
  • OEM: Dusenbery
  • Width: 62.00
