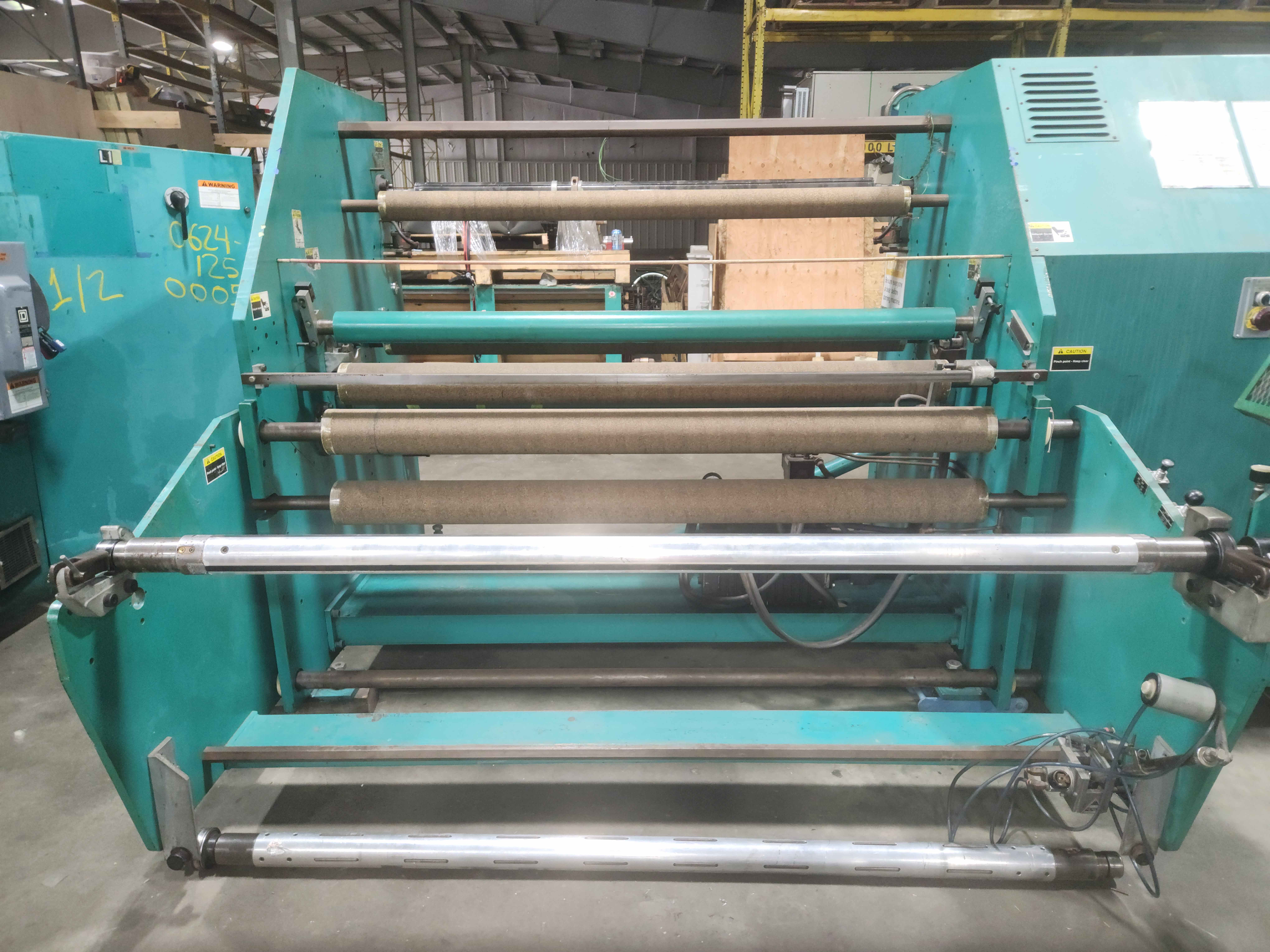

62 inch Dusenbery Model 10,000 Duplex Slitter Rewinder
Images








Description

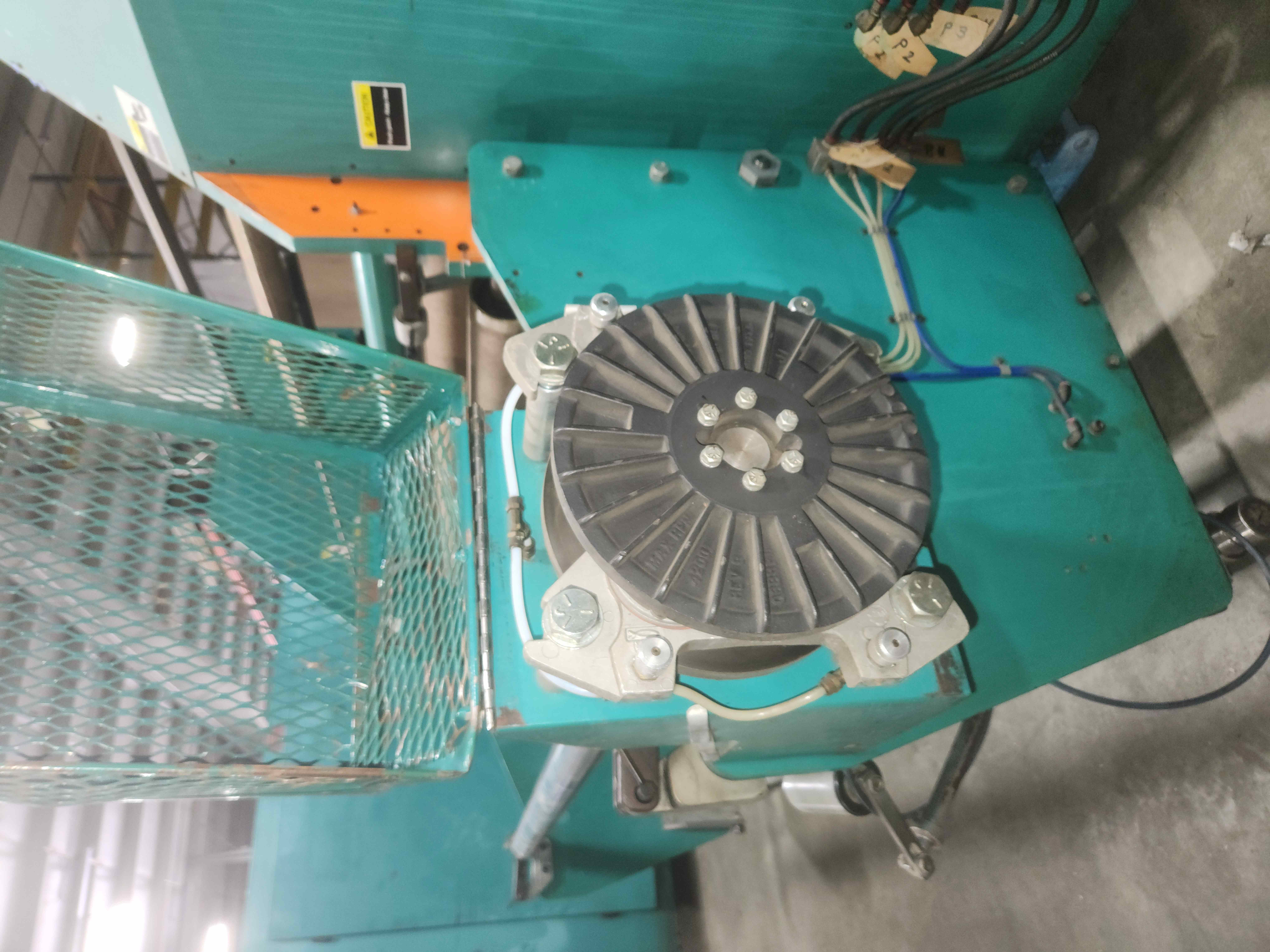

62 inch wide Dusenbery Model 10,000 Duplex Differential Slitter Rewinder. Equipped with a 40 inch diameter unwind with a pneumatic air brake. Spectrum 7.5 HP DC drive control with an Emerson 7.5 HP DV motor for speeds to 500 FPM. Can be qquiped for both shear and razor slitting. Fife P-50 edge guide. Programmable footage counter. Twenty four inch rewind diameter with top idlers, and thirty inch diameter without. Two or four zone manual tension control. Benick can upgrade to a small PLC with an HMI for automatic tension profiling. The slipping core/spacer rewind amndels are for a three inch core. Adapters available at Benick allow for six inch cores. Dimensions listed in feet.
Details
- Listing #: 20015
- Category: Duplex Center Slitters
- OEM: Dusenbery
- Width: 62.00
